Pellet igniters – ceramic hot surface igniters for pellet burners
  • Pellet igniters – ceramic hot surface igniters for pellet burners
  • Pellet igniters – ceramic hot surface igniters for pellet burners

Pellet igniters – ceramic hot surface igniters for pellet burners

Place of Origin China
Brand Name KRHX
Certification CE / ROHS / ETL
Model Number KR-ST
Product Details
Material:
Al2O3 Insulation Ceramics
Max Working Temperature:
600-1100℃
Voltage:
230V
Power:
165W
Application:
High-Temperature Igniter For Biomass-Burners
Dimension(L*W*H):
φ10.5*93 Mm
Flange:
Ceramic Flange
Lead Wire:
0.8/1mm
Connector:
Customized
Payment & Shipping Terms
Minimum Order Quantity
10
Packaging Details
In cartons each containing 20 boxes
Delivery Time
5-8 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000PCS/Week
Product Description

Pellet igniters – ceramic hot surface igniters for pellet burners



Igniting wood-pellets with a good conscience – for the sake of the environment!



Ceramic hot surface igniters for pellet boilers only need approx. 1/10 of the energy of that needed by hot air fans and ignition blowers.

Their ignition capacity lies between 120 and 200 watt. Depending on the positioning of the ignition element in the boiler, the ignition time of approx. 60 seconds is extremely short. This also means minimal emissions!



Concrete applications:

• Hot surface igniters (ignition of gas, oil, biomass, pellets)

• Hot air generation

• Tool heating

• Melting/welding/soldering/hot gas soldering

• Heaters for chemical analysis and laboratory equipment (e.g. mini-furnaces, reactors)

• Customer-specific heating solutions



A summary of the advantages:

• Extremely fast and hot (permanently at 1100°C, for the short term up to 1300°C)

• Extremely energy-efficient

• Resistant to thermal stress (rapid switching is easily tolerated)

• Can be regulated easily and seamlessly (Pt characteristic)

• Very corrosion-resistant

• Practically non-ageing

• Ready assembled, easy-to-install systems

• Space-saving, noiseless and impervious to overheating (in case the blower fails)

• Extremely long-lasting and resilient

• Minimal energy consumption

• Completely electrically insulated

• No sensitive welding points



Specification

Product Name Pellet igniters – ceramic hot surface igniters for pellet burners
Size

length l = 94 mm and diameter d = 18 mm,

Voltage 230V,
Power 165W
Flange Ceramic flange
Cable 300-800mm
Lead In a ф 0. 5mm of Nickel wire(The length depends on the customer)
Application

High-Temperature Igniter for Biomass-Burners

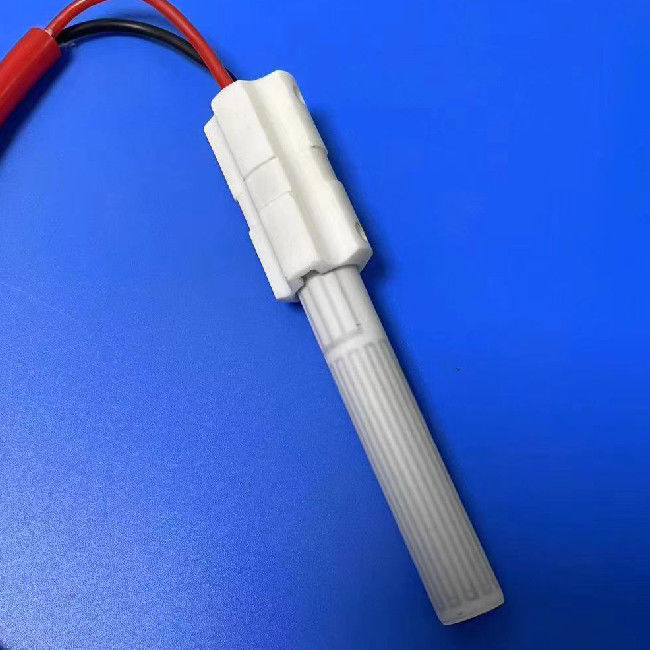

Ceramic igniter show

Pellet igniters – ceramic hot surface igniters for pellet burners 0





    Our hot surface igniters are perfectly suited for this purpose. The special geometry of the cylindrical ceramic heaters,

in combination with an extremely high surface temperature of 1000 °C, heats up the supply air in the shortest possible

time to an extremely high temperature. After a maximum of 90 seconds, the fuel is ignited with a fraction of the energy

that is required for a hot air or ignition blower. This works, of course, not only with pellets, but also with wood chips,

firewood, coal bricks or other solid fuels made of biomass.
