Fast Heating Ceramic Biomass Igniter 150W White For Pellet Stove
  • Fast Heating Ceramic Biomass Igniter 150W White For Pellet Stove
  • Fast Heating Ceramic Biomass Igniter 150W White For Pellet Stove

Fast Heating Ceramic Biomass Igniter 150W White For Pellet Stove

Place of Origin China
Brand Name KRHX
Certification CE
Model Number KR-W1-S
Product Details
Time Of Ignition:
60-90 Seconds
Max Working Temperature:
Up To 1100℃
Feature:
Fast Heating
Voltage:
110V/230V
Power:
150W
Application:
Pellet Stove
Dimension(L*W*H):
11.5*6.5*93 Mm
Flange:
G3/8 Thread
Cable:
Customized
Color:
White
Highlight:

Fast Heating Ceramic Biomass Igniter

,

Ceramic Biomass Igniter 150W

Payment & Shipping Terms
Minimum Order Quantity
10
Packaging Details
In cartons each containing 20 boxes
Delivery Time
5-8 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000PCS/Week
Product Description

Biomass Pellet Ceramic Lighter 150W



Introducing the Kairui ceramic biomass igniter range, an advance in ignition technology for solid wood fuels.



Ceramic hot surface igniters for pellet boilers only need approx. 1/10 of the energy of that needed by hot air fans and ignition blowers. Their ignition capacity lies between 120 and 350 W. Depending on the positioning of the ignition element in the boiler, the ignition time of approx. 60 seconds is extremely short. This also means minimal emissions.



Ceramic Igniter for pellet stoves, designed to ignite wood pellets and wood chips in stoves, boilers and burners. Tested for more than 10,000 ON/OFF cycles, with rapid ignition times.

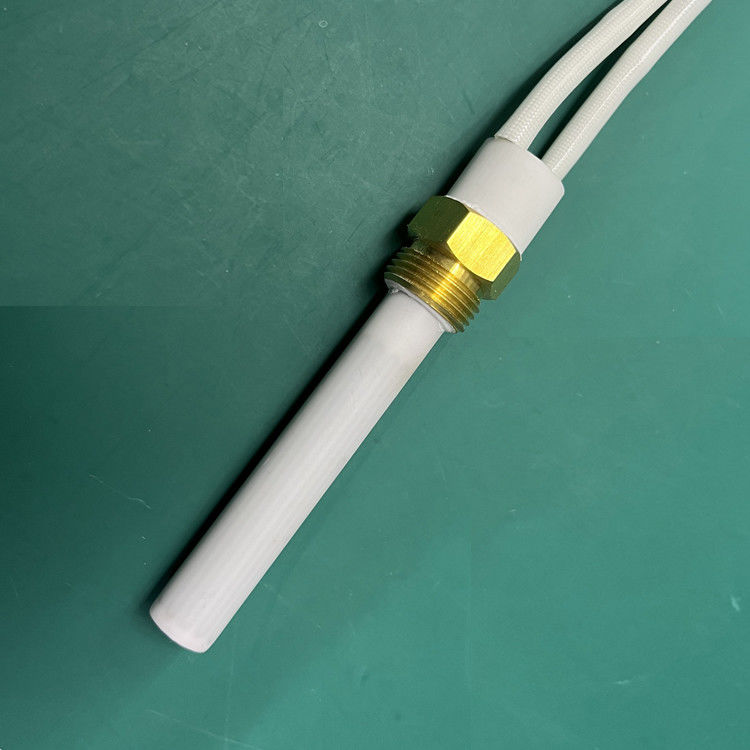

Fast Heating Ceramic Biomass Igniter 150W White For Pellet Stove 0



Specification

Product Name Biomass Pellet Ceramic Lighter 150W
Size φ11.5*93mm
Voltage 230V
Power 150W(±10%)
Flange G3/8 thread
cable resistant cable resistant to 200-500°C
Lead In a ф 0. 5mm of Nickel wire(The length depends on the customer)
Application Boilers and burners.



Advantage

* A reduction in energy consumption compared to traditional cartridges or resistors

* Durability
* Ignition times of 60 - 90 seconds
* Easy to install
* In case of malfunction of the fans does not overheat
* Available voltage 110/120/220/230V
* Electrically fully insulated without exposed electrical contacts
* Resistant to oxidation and corrosion
* fully compliant with the direttive CE


Application

•Wood pellet stove

•Wood pellet boiler

•Wood pellet burner

•Wood chips burner

•Straw burner

•Other biomass burner

•Gas Stove Burner ect

Fast Heating Ceramic Biomass Igniter 150W White For Pellet Stove 1

Company profile

Kairui Corporation specialises in ceramic hot surface igniters and has many years experience of working closely with customers to develop bespoke solutions for innovative appliance manufacturers. Kairui are a trusted manufacturer of hot surface ignition products to many industry sectors.
