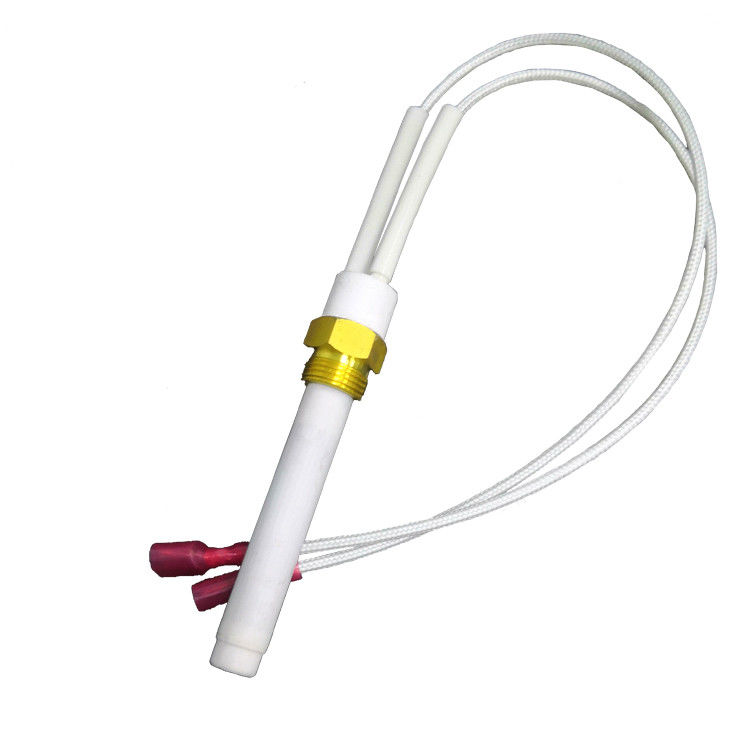

Kairui Ceramic Pellet Igniter 200W For Stoves / Boilers / Burners
  • Kairui Ceramic Pellet Igniter 200W For Stoves / Boilers / Burners
  • Kairui Ceramic Pellet Igniter 200W For Stoves / Boilers / Burners
  • Kairui Ceramic Pellet Igniter 200W For Stoves / Boilers / Burners
  • Kairui Ceramic Pellet Igniter 200W For Stoves / Boilers / Burners

Kairui Ceramic Pellet Igniter 200W For Stoves / Boilers / Burners

Place of Origin China
Brand Name KRHX
Certification CE
Model Number KR-W1-S
Product Details
Time Of Ignition:
60-90 Seconds
Max Working Temperature:
600-1100℃
Feature:
Fast Heating
Voltage:
110V/230V
Power:
180W,250W,200W 280W,300W
Application:
Pellet Stove
Dimension(L*W*H):
11.5*6.5*93 Mm
Flange:
G3/8 Thread
Cable:
Customized
Connector:
Male 4,8 Connector
High Light:

Kairui Ceramic Pellet Igniter

,

200 Watt Ceramic Pellet Igniter

,

KRHX Pellet Ceramic Igniter

Payment & Shipping Terms
Minimum Order Quantity
10
Packaging Details
In cartons each containing 20 boxes
Delivery Time
5-8 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000PCS/Week
Product Description

Kairui Ceramic Pellet Igniter 200W for Stoves, Boilers & Burners

Brief description

Introducing the Kairui ceramic biomass igniter range, an advance in ignition technology for solid wood fuels.

Kairui ceramic igniter is good for lighting wood pellet and biomass burners. They use only a fraction of the energy required by hot air fans and ignition blowers and will light all fuel types. Ideal for wood pellets, corn, maize, coal, coke etc.

Kairui Ceramic Pellet Igniter 200W For Stoves / Boilers / Burners 0

Specification

Product Name Pellet Stove Ceramic igniters
Size φ11.5*93mm
Voltage 110V, 120V,220V,230V
Power 180-300W
Flange G3/8 thread
Cable 300-800mm
Lead In a ф 0. 5mm of Nickel wire(The length depends on the customer)
Application Pellet stove



Ceramic igniter technology benefits

* A reduction in energy consumption compared to traditional cartridges or resistors

* Durability
* Ignition times of 60 - 90 seconds
* Tested for over 100,000 cycles (in the World pellet market for 15 years)
* Easy to install
* Adaptable to any steel pipe with an internal diameter of 16-19 mm
* In case of malfunction of the fans does not overheat
* Available voltage 100/120/220/240V
* Electrically fully insulated without exposed electrical contacts
* Resistant to oxidation and corrosion
* fully compliant with the direttive CE


Application

Biomass Boiler, Furnace, Incense burner, etc…

Kairui Ceramic Pellet Igniter 200W For Stoves / Boilers / Burners 1



Handling and notice of using ceramic igniter

1.Don’t give the ceramic heater impact like falling down to the ground or strike it by hammer forcefully.

2.Using ceramic heater at rating voltage. High voltage may cause the damage of ceramic heater.

3.Temperature control device should be used on ceramic heater

And the surface temperature of ceramic heater should no more than 1100℃, since the temperature is closely related to its working life.



Company profile

Kairui Corporation specialises in ceramic hot surface igniters and has many years experience of working closely with customers to develop bespoke solutions for innovative appliance manufacturers. Kairui are a trusted manufacturer of hot surface ignition products to many industry sectors.
