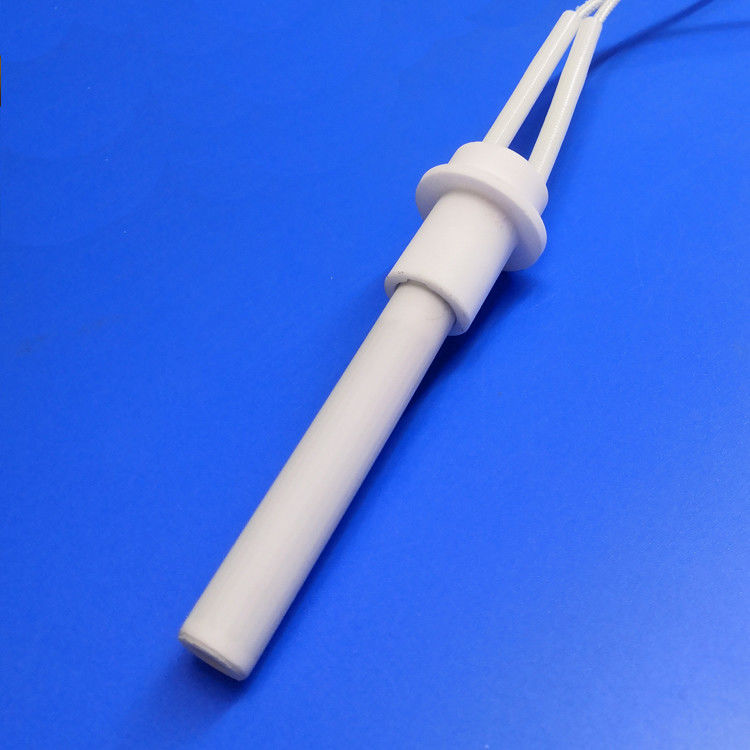

High Temperature Resistant Alumina Ceramic Igniter Electrodes Spark Plug for pellet stove
  • High Temperature Resistant Alumina Ceramic Igniter Electrodes Spark Plug for pellet stove
  • High Temperature Resistant Alumina Ceramic Igniter Electrodes Spark Plug for pellet stove

High Temperature Resistant Alumina Ceramic Igniter Electrodes Spark Plug for pellet stove

Place of Origin China
Brand Name KRHX
Certification CE
Model Number KR-H3
Product Details
Name:
Ceramic Ignition Electrode Spark Plug
Max Working Temperature:
1020℃
Feature:
Sustainable
Voltage:
120V, 230V
Power:
260-300W
Application:
Pellet Stove
Dimension(L*W*H):
11.5*106 Mm
Time To Ignition:
60 – 90 Seconds
Cable:
Heat Shrinkable Tube
Lead Wire:
Customized
High Light:

High Temperature Resistant Ceramic Igniter

,

Alumina Ceramic Igniter

,

Ceramic Igniter Electrodes

Payment & Shipping Terms
Minimum Order Quantity
10
Packaging Details
In cartons each containing 20 boxes
Delivery Time
5-8 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000PCS/Week
Product Description

Ceramic Spark Plug for Pellet Stove



Introducing the Kairui ceramic biomass igniter range, an advance in ignition technology for solid wood fuels.



Brief description



A 230V 300W cartridge pellet stove resistance igniter, also known as an ignitor, is an electrical component used to ignite the pellets in a pellet stove. When electricity is supplied to the igniter, the heating element becomes hot, which ignites the pellets and starts the combustion process.



Specification

Product Name

High Temperature Resistant Alumina Ceramic Ignition Electrode Spark Plug

Size φ11.5*106mm
Voltage 230V
Power 300W
Cable white fiberglass insulated 0.75 mm² cable
Lead In a ф 0. 5mm of Nickel wire(The length depends on the customer)
Application Pellet stove/boiler



High Temperature Resistant Alumina Ceramic Igniter Electrodes Spark Plug for pellet stove 0



Main Advantage

* Small size, light weight and energy-saving

* Long life, Free replacement within 2 years

* No leakage when working continuossly.

* Timing of ignition with 90 seconds.

* On-off 10,000 cycle without fault.

* OEM order are available for all kinds of igniter.

* High reliability: Superior voltage resistance and electrical resistance, No electric noise



Application

Pellet igniters are widely used in biomass burning system, esp. in pellet stoves and barbecue grills. It has a high efficiency(more than 90%)of ignition and very easy to install before operating.

•Wood pellet stove
•Wood pellet boiler
•Wood pellet burner
•Wood chips burner
•Straw burner
•Other biomass burner



Our service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.



Company profile

Kairui Company specialises in ceramic hot surface igniters and has many years experience of working closely with customers to develop bespoke solutions for innovative appliance manufacturers. Kairui are a trusted manufacturer of hot surface ceramic ignition products to many industry sectors.
