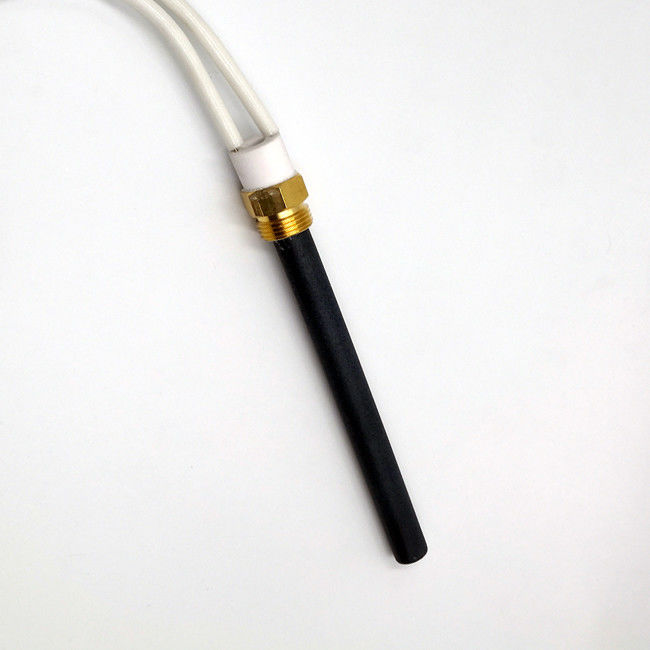

KRHX Length 147mm 300W Ceramic Heating Element For Pellet Stove
  • KRHX Length 147mm 300W Ceramic Heating Element For Pellet Stove
  • KRHX Length 147mm 300W Ceramic Heating Element For Pellet Stove
  • KRHX Length 147mm 300W Ceramic Heating Element For Pellet Stove

KRHX Length 147mm 300W Ceramic Heating Element For Pellet Stove

Place of Origin China
Brand Name KRHX
Certification CE
Model Number KR-W2
Product Details
Name:
Pellet Stove Igniter Cartridge Heater Electric Heating Elements Ceramic Heater
Max Working Temperature:
600-1100℃
Feature:
Sustainable
Voltage:
230V
Power:
300-350W
Application:
Pellet Stove
Dimension(L*W*H):
11.5*145 Mm
Flange:
Brass G3/8
Cable:
Heat Shrinkable Tube
Lead Wire:
Customized
High Light:

300W Ceramic Heater Element

,

Ceramic Heating Element For Pellet Stove

Payment & Shipping Terms
Minimum Order Quantity
10
Packaging Details
In cartons each containing 20 boxes
Delivery Time
5-8 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000PCS/Week
Product Description

Ceramic heating element for pellet stoves Eco Spar, total length 147mm, 300W



Introducing the Kairui ceramic biomass igniter range, an advance in ignition technology for solid wood fuels. Ceramic resistor for pellet stove lighting - ignitor, designed to light pellets and wood chips for stoves boilers and burners.



Features of Ceramic Heating Igniter



It is a new type of high efficient heating elements, which can save more than 20%-30% power effect compare to PTC ceramic heaters. Our alumina ceramic heaters have many excellent features:

High power density, excellent thermal efficiency

Rapid heating, non-hot spot temperature distribution

High temperature, small size, light weight

Excellent insulation (the leakage current is < 0.5 mA under voltage 4500V/1S testing with no breakdown)

High reliability, stable resistance, no electric noise

Good chemical resistance

full compliance with EU RoHS (no lead, cadmium, mercury, hexavalent chromium, PCBS, and other harmful substances).



Specification

Product Name Ceramic heating element for pellet stoves Eco Spar, total length 147mm, 300W
Dimension Total lenght - 147 mm (Up to screw length - 125 mm,Diameter - 12 mm
Voltage 230V
Power consumption 300W
Flange Brass G3/8 thread
Cable 300-800mm
Lead In a ф 0. 5mm of Nickel wire(The length depends on the customer)
Application Pellet boiler, Pellet stove



KRHX Length 147mm 300W Ceramic Heating Element For Pellet Stove 0



Advantage

Long life, Free replacement within 2 years

No leakage when working continuossly.

Timing of ignition with 90 seconds.

On-off 10,000 cycle without fault.

OEM order are available for all kinds of igniter.



Application

* Wood pellet burner /Wood chips burner /Straw burner /Other biomass burner;
* 3D prinert
* Industrial drying equipment, electric Bonding liquid heater;
* Medical devices and other precise instrument.



Handling and notice of using ceramic heating element

1.Don’t give the ceramic heater impact like falling down to the ground or strike it by hammer forcefully.

2.Using ceramic heater at rating voltage.  High voltage may cause the damage of ceramic heater.

3.Temperature control device should be used on ceramic heater And the surface temperature of ceramic heater should no more than 1100℃, since the temperature is closely related to its working life.
