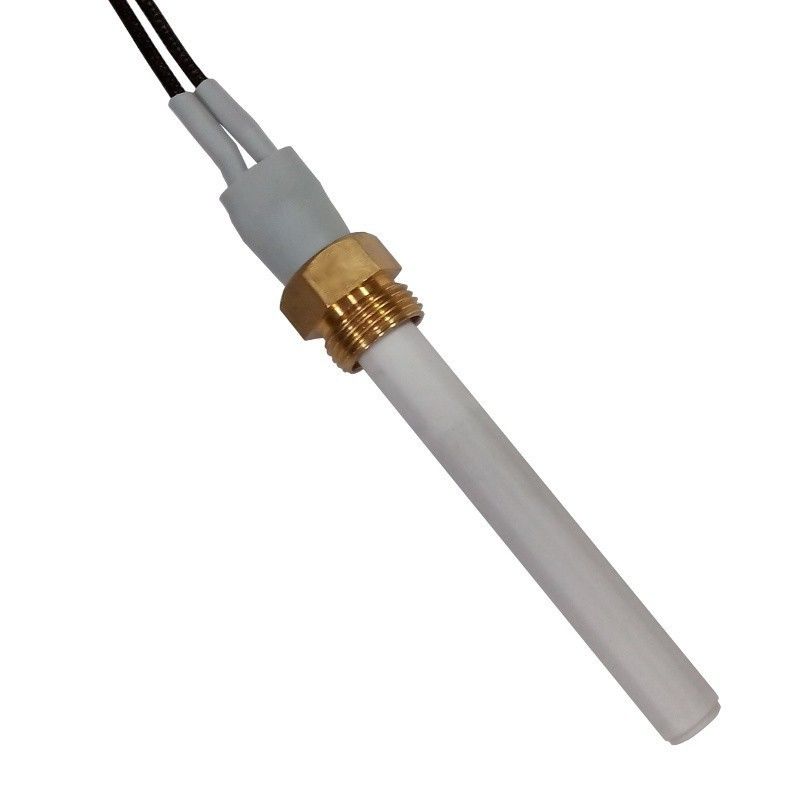

300W 220V Ceramic Pellet Igniter Resistance Lighter Φ 10.5mm
  • 300W 220V Ceramic Pellet Igniter Resistance Lighter Φ 10.5mm

300W 220V Ceramic Pellet Igniter Resistance Lighter Φ 10.5mm

Place of Origin China
Brand Name KRHX
Certification CE
Model Number KR-W1-B2
Product Details
Name:
Cartridge Resistance Igniter
Max Working Temperature:
600-1100℃
Feature:
Sustainable
Voltage:
230V
Power:
300W
Application:
Pellet Stove
Dimension(L*W*H):
10.5*106 Mm
Flange:
Brass G3/8
Cable:
Heat Shrinkable Tube
Lead Wire:
Customized
Highlight:

220V Ceramic Pellet Igniter

,

Ceramic Pellet Igniter Resistance Lighter

Payment & Shipping Terms
Minimum Order Quantity
10
Packaging Details
In cartons each containing 20 boxes
Delivery Time
5-8 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000PCS/Week
Product Description

Pellet Igniter Resistance Lighter 300W 220V Φ 10.5mm



One special application area for Kairui's high temperature ceramic igniters is in heating systems that use solid fuels such as wood pellets as energy source. The challenge here is to ignite the biomass in a very short time while retaining very low emission values. This can be perfectly achieved by Kairui's hot surface igniters.

300W 220V Ceramic Pellet Igniter Resistance Lighter Φ 10.5mm 0

Ceramic Igniter for pellet stoves, designed to ignite wood pellets and wood chips in stoves, boilers and burners. Tested for more than 10,000 ON/OFF cycles, with rapid ignition times.



Specification

Product Name Pellet Igniter Resistance Lighter 300W 220V Φ 10.5mm
Size φ10.5*106mm
Voltage 220V
Power 300W
Flange Brass G3/8 screw
Cable 300-800mm
Lead In a ф 0. 5mm of Nickel wire(The length depends on the customer)
Application Pellet boiler, Pellet stove



Advantage

Long life, Free replacement within 2 years

No leakage when working continuossly.

Timing of ignition with 90 seconds.

On-off 10,000 cycle without fault.

OEM order are available for all kinds of igniter.



Application

* Wood pellet burner /Wood chips burner /Straw burner /Other biomass burner;
* 3D prinert
* Industrial drying equipment, electric Bonding liquid heater;
* Medical devices and other precise instrument.



Our service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.



Company profile

Kairui Company specialises in ceramic hot surface igniters and has many years experience of working closely with customers to develop bespoke solutions for innovative appliance manufacturers. Kairui are a trusted manufacturer of hot surface ceramic ignition products to many industry sectors. If you want to know about our products, we can also provide samples. Welcome friends and customers at home and abroad to visit the factory. We have many products in stock, if you want to buy wholesale, you can contact us.
