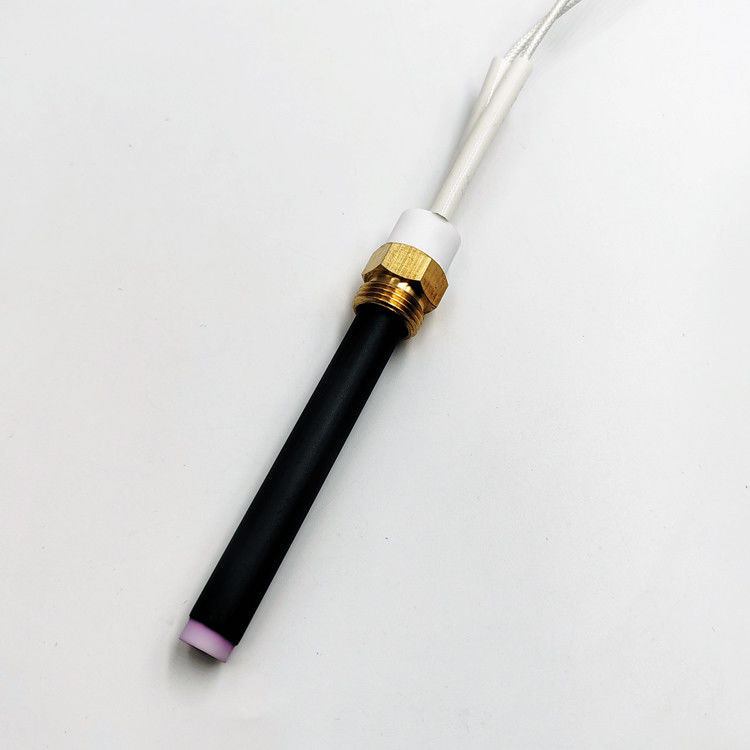

Long-lasting Ceramic Igniter 250W 3/8″ Connection Length 88mm for Pellet Stoves/Boilers
  • Long-lasting Ceramic Igniter 250W 3/8″ Connection Length 88mm for Pellet Stoves/Boilers
  • Long-lasting Ceramic Igniter 250W 3/8″ Connection Length 88mm for Pellet Stoves/Boilers
  • Long-lasting Ceramic Igniter 250W 3/8″ Connection Length 88mm for Pellet Stoves/Boilers
  • Long-lasting Ceramic Igniter 250W 3/8″ Connection Length 88mm for Pellet Stoves/Boilers
  • Long-lasting Ceramic Igniter 250W 3/8″ Connection Length 88mm for Pellet Stoves/Boilers

Long-lasting Ceramic Igniter 250W 3/8″ Connection Length 88mm for Pellet Stoves/Boilers

Place of Origin China
Brand Name KRHX
Certification CE
Model Number KR-W4
Product Details
Name:
Ceramic Igniter 250W 3/8″ Connection, Length 88mm (No Perforated Version)
Max Working Temperature:
600-1000℃
Feature:
Fast Heating
Voltage:
230V
Power:
250-300W
Application:
Pellet Stoves / Boilers
Dimension(L*W*H):
11.5*106 Mm
Time To Ignition:
About 90 Seconds
Terminal:
Ultrasonic + Crimping
Lead Wire:
Silicone Outside And Fibre Inside
Highlight:

250W Ceramic Igniter

,

Long-lasting Ceramic Igniter

,

3/8″ Ceramic Igniter

Payment & Shipping Terms
Minimum Order Quantity
10
Packaging Details
In cartons each containing 20 boxes
Delivery Time
5-8 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000PCS/Week
Product Description

Ceramic Igniter 250W 3/8″ Connection, Length 88mm (No Perforated Version)



Pellet stove lighting ceramic resistor – ignitor, with 3/8″ threaded connection.

No Perforated version.



Size



Diameter: 11.5 mm. Total length: 106mm. Bottom length: 80 mm.



Power



250-280 Watts.



Maximum temperature



970 ° C



Application

Resistance,

ignition glow plug for ceramic pellet stoves, suitable for pellet ignition and wood chips for stoves, boilers and burners.



Tested



for over 10,000 ON / OFF cycles, with fast ignition times.



Flange



G3/8 brass flange



Mounts on stoves



Central heating boilers

PELLASX pellet burners.



Detailed Images



Long-lasting Ceramic Igniter 250W 3/8″ Connection Length 88mm for Pellet Stoves/Boilers 0

CERAMIC IGNITER IS WITHOUT HOLE SEE BELOW PICTURE

Long-lasting Ceramic Igniter 250W 3/8″ Connection Length 88mm for Pellet Stoves/Boilers 1



Up to screw length: 80 mm



Long-lasting Ceramic Igniter 250W 3/8″ Connection Length 88mm for Pellet Stoves/Boilers 2



* Installation

a. Ceramic ignition technology benefits

b. A fraction of the energy consumption compared to conventional cartridge or element heater
c. Long lasting
d. Time to ignition 60~90 seconds
e. Tested to 100,000 cycles
f. Easy to install and retrofit
g. Fits any steel tube with an inner diameter of ≥18mm
h. 1000°C at steady-state temperature
i. Cannot overheat even with blower failure
j. 100/120/220/240V forward current
k. Fully electrically insulated with no exposed electric contacts
l. Impervious to oxidation and corrosion
m. Fully comply with the CE (TUV certification), ROHS and REACH (TUV certification) directives.
n. Ignite wood chips, split logs, coal briquettes or other biomass, straw, corn etc



Related Products

Long-lasting Ceramic Igniter 250W 3/8″ Connection Length 88mm for Pellet Stoves/Boilers 3Long-lasting Ceramic Igniter 250W 3/8″ Connection Length 88mm for Pellet Stoves/Boilers 4Long-lasting Ceramic Igniter 250W 3/8″ Connection Length 88mm for Pellet Stoves/Boilers 5



φ8.8*71mm                                  φ9.3*81mm                                   φ11.5*93mm

12V 80W                                      110V 110W                                   120V 230W





Long-lasting Ceramic Igniter 250W 3/8″ Connection Length 88mm for Pellet Stoves/Boilers 6Long-lasting Ceramic Igniter 250W 3/8″ Connection Length 88mm for Pellet Stoves/Boilers 7Long-lasting Ceramic Igniter 250W 3/8″ Connection Length 88mm for Pellet Stoves/Boilers 8



φ11.5*93mm                                φ11.5*93mm                                  φ11.5*106mm

230V 230W                                  220V 180-250W                            220v300W





Long-lasting Ceramic Igniter 250W 3/8″ Connection Length 88mm for Pellet Stoves/Boilers 9Long-lasting Ceramic Igniter 250W 3/8″ Connection Length 88mm for Pellet Stoves/Boilers 10Long-lasting Ceramic Igniter 250W 3/8″ Connection Length 88mm for Pellet Stoves/Boilers 11



φ9.3*71mm                                  φ11.5*93mm                                 φ11.5*145mm

12V 110W                                    120V 220W                                   220V 400W



Packing & Delivery



Packaging Details :1000pcs/CTN, each CTN with single box, 40CTN/pallet. Export standard, 100% no damage
Delivery Time:3-15days


SHIPPING - Meanwhile, other shipping ways are available such as FedEx, UPS, TNT, EMS, China Post or Sea.

Just let us know which one is best for you, we do all the left work.

Long-lasting Ceramic Igniter 250W 3/8″ Connection Length 88mm for Pellet Stoves/Boilers 12



  Our Company



Shaanxi Kairuihongxing Electronic Co.,Ltd is a professional domestic and foreign trade, production and sales

integration of company, we produce all types of ceramic igniters, ozone generator ceramic plate and iqos heating blade.


Our company was established in 2007, have many years of history in the ceramic heating industry,it can also be in

accordance with the requirements of the project put forward by your company, by our professional team which will set the stature for you do not trouble back at home of the one-stop service from designation installation and debugging to production.

As a result of our high quality products and outstanding customer service, we have gained a global sales network

reaching Europe. At the same time we has obtained ISO9000, CE, ROHS certificate.

If you are interested of our products or would like to discuss a custom order, please feel free to contact us. We are

looking forward to forming successful business relationships with new clients around the world in the near future.



Long-lasting Ceramic Igniter 250W 3/8″ Connection Length 88mm for Pellet Stoves/Boilers 13

Long-lasting Ceramic Igniter 250W 3/8″ Connection Length 88mm for Pellet Stoves/Boilers 14

Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.



FAQ

Q: Are you trading company or manufacturer ?
A: We are a company with own factory.

Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. 3 to 7 working days for sample,7 to 12 working days for mass production goods.

Q: Do you provide samples ? is it free or extra ?
A: Yes , we have different customer make their own OEM product .so we also can make product as per your requirement

Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.

120V 300W
