Glow Igniter Ceramic Pellet Burners Rod Ignition Element Pelletoefen Spark Plug
  • Glow Igniter Ceramic Pellet Burners Rod Ignition Element Pelletoefen Spark Plug

Glow Igniter Ceramic Pellet Burners Rod Ignition Element Pelletoefen Spark Plug

Place of Origin China
Brand Name KRHX
Certification CE
Model Number KR-H3
Product Details
Name:
Ceramic Ignition Electrode Spark Plug
Max Working Temperature:
600-1100℃
Feature:
Sustainable
Voltage:
120V, 230V
Power:
260-300W
Application:
Pellet Stove
Dimension(L*W*H):
11.5*106 Mm
Time To Ignition:
60 – 90 Seconds
Cable:
Heat Shrinkable Tube
Lead Wire:
Customized
Payment & Shipping Terms
Minimum Order Quantity
10
Packaging Details
In cartons each containing 20 boxes
Delivery Time
5-8 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000PCS/Week
Product Description

Glow Igniter Ceramic Pellet Burners Rod Ignition Element Pelletoefen Spark Plug



Introducing the Kairui ceramic biomass igniter range, an advance in ignition technology for solid wood fuels.



Brief description

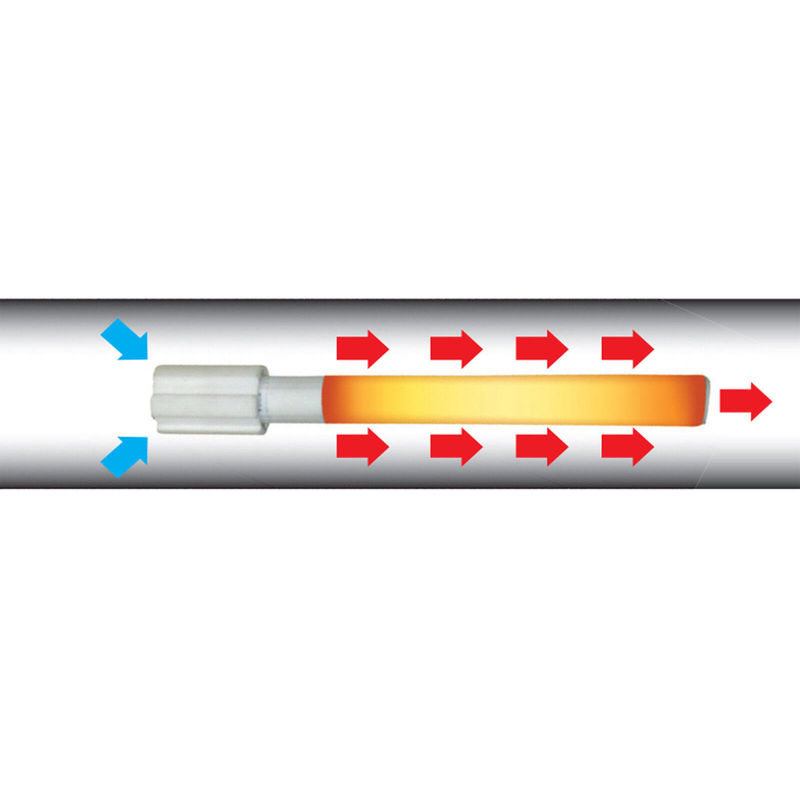

A 230V 300W cartridge pellet stove resistance igniter, also known as an ignitor, is an electrical component used to ignite the pellets in a pellet stove.

When electricity is supplied to the igniter, the heating element becomes hot, which ignites the pellets and starts the combustion process.

Glow Igniter Ceramic Pellet Burners Rod Ignition Element Pelletoefen Spark Plug 0

Ceramic Igniter for pellet stoves, designed to ignite wood pellets and wood chips in stoves, boilers and burners.

Ceramic lighting resistor for pellet stoves, designed to light pellets and wood chips for stoves boilers and burners.

Specification

Product Name

Glow Igniter Ceramic Pellet Burners Rod Ignition Element Pelletoefen Spark Plug

Size φ11.5*106mm
Voltage 230V
Power 300W
Cable white fiberglass insulated 0.75 mm² cable
Lead In a ф 0. 5mm of Nickel wire(The length depends on the customer)
Application Pellet stove/boiler



Glow Igniter Advantage

Ready assembled,easy-to-install systems. The high-temperature heating element in a temperature-resistant ceramic socket.

Space-saving, noiseless, and impervious to overheating (in case the blower fails)

Extremely long-lasting and resilient: Lifetime up to 100,000 cycles.

Minimal energy consumption.

Completely electrically insulated.

* No exposed electrical contacts
* No sensitive welding points



Application

Pellet igniters are widely used in biomass burning system, esp. in pellet stoves and barbecue grills.

It has a high efficiency(more than 90%)of ignition and very easy to install before operating.

•Wood pellet stove
•Wood pellet boiler
•Wood pellet burner
•Wood chips burner
•Straw burner
•Other biomass burner
