| Place of Origin | China |
| Brand Name | KRHX |
| Certification | CE / ROHS / ETL |
| Model Number | KR-W1 |

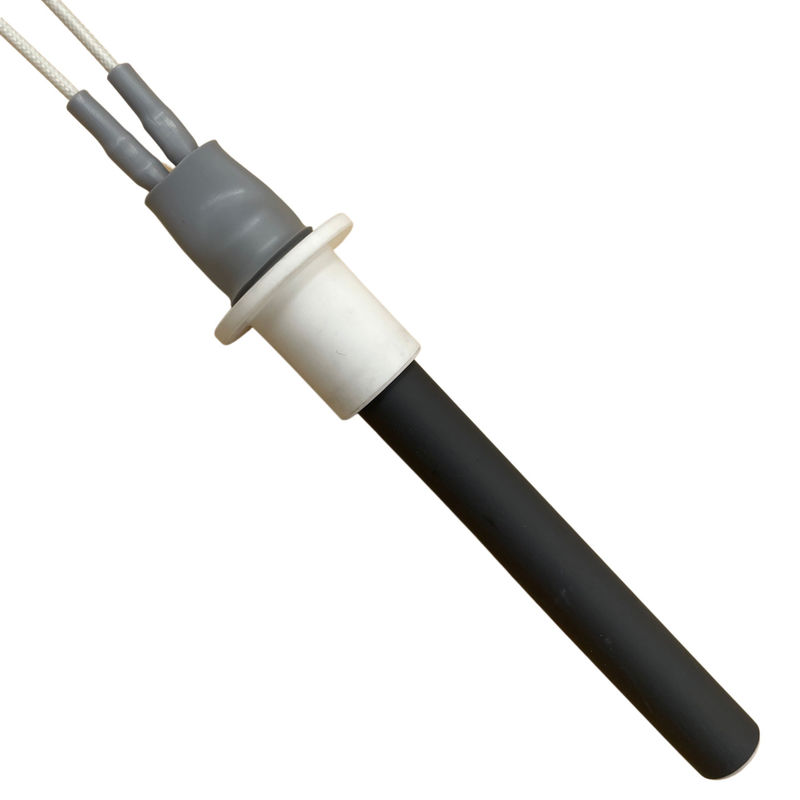

Alumina Ceramic Eletronic Lighter for Wood Pellet Burner
Introducing the Kairui ceramic biomass igniter range, an advance in ignition technology for solid wood fuels.
Brief description
Ceramic hot surface igniters for pellet boilers only need approx. 1/10 of the energy of that needed by hot air fans and ignition blowers. Their ignition capacity lies between 120 and 350 W. Depending on the positioning of the ignition element in the boiler, the ignition time of approx. 60 seconds is extremely short. This also means minimal emissions.
Specification
| Model No | KR--MTR-B |
| Voltage | 120V / 230V |
| Power | 160 W / 180 W / 210 W / 225 W / 230 W / 240 W / 255 W |
| Tube Size | OD11.5 × ID6.5 × L106 mm(Or Customized) |
| Power | 250W |
| Cable | silicone cable, heat resistance 180°C |
| Lead wire | 300mm / 400mm / 500mm / 900mm (Customized is accept) |
| Range of temperature | 800~1100 °C |
| Package includes | 5 pcs |
| Applications of use: | Hermetic pellet stove |
Wood pellet boiler | |
Wood pellet BBQ / smoker | |
Wood chips boiler | |
Biomass combi boiler (dual pellet/wood) | |
Kerosene stove | |
Liquid vaporization | |
Plankian black body source | |
| Advantages | 1) Higher temperature, about twice of traditional metal sheathed heater; |
| 2) Shorter ignition time, about 60~90 seconds | |
| 3) Electrically insulated with no exposed electric contacts | |
| 4) Wear and corrosion resistance | |
| 5) Long life time | |
| 6) Easy to install and replace |
Testing - On-off 10,000 cycle
Observations: This replacement usually has a life of 2 to 4 years (depending on the number of ignitions and humidity that exists in the place).
It is advisable to change it in a maximum of 4 years, to prevent it from stopping working in the middle of the winter season.
Once unsealed from its heat shrink bag, this product cannot be returned.
Do you need an ignition guarantee for your pellet stove?
No problem! Our pellet stove accessories are designed to provide functionality, safety and quality.
All you need to do is place the igniter in the container in the pellet combustion chamber to activate the combustion, making the pellet boiler easy to ignite.
