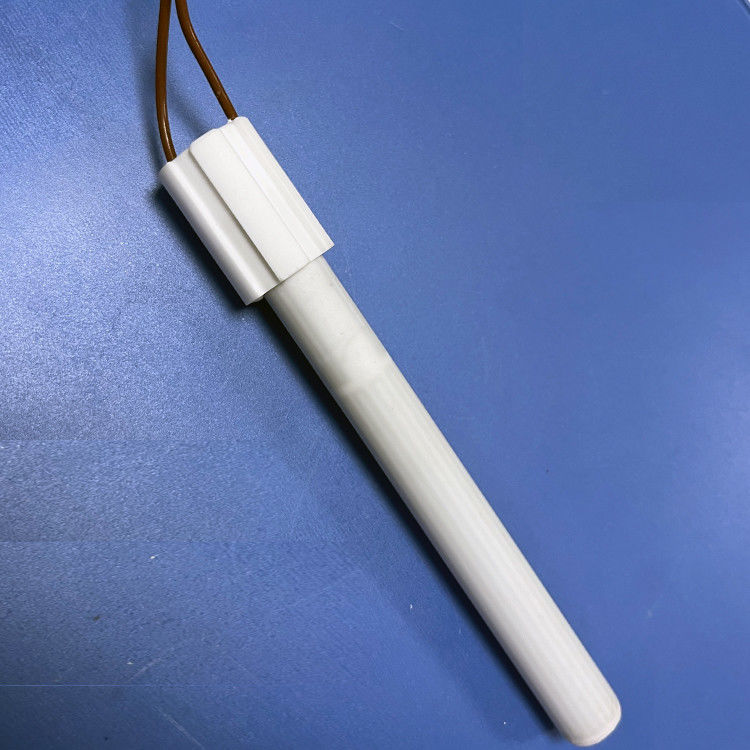

230V Ceramic Ignition Elements Candle Ceramic Pellet Stove Edilkamin Palazzetti Cast Iron Flame
  • 230V Ceramic Ignition Elements Candle Ceramic Pellet Stove Edilkamin Palazzetti Cast Iron Flame
  • 230V Ceramic Ignition Elements Candle Ceramic Pellet Stove Edilkamin Palazzetti Cast Iron Flame
  • 230V Ceramic Ignition Elements Candle Ceramic Pellet Stove Edilkamin Palazzetti Cast Iron Flame

230V Ceramic Ignition Elements Candle Ceramic Pellet Stove Edilkamin Palazzetti Cast Iron Flame

Place of Origin China
Brand Name KRHX
Certification CE / ROHS / ETL
Model Number KR-H3
Product Details
Name:
Ceramic Ignition Electrode Spark Plug
Max Working Temperature:
600-1100℃
Feature:
Sustainable
Voltage:
230V
Power:
280W
Application:
Pellet Stove Edilkamin Palazzetti Cast Iron Flame
Dimension(L*W*H):
11.5*106 Mm
Advantage:
Higher Ignition Rate
Cable:
Heat Shrinkable Tube
Mounting Type:
Smooth
High Light:

Cast Iron Flame Ceramic Pellet Stove

,

230V Ceramic Ignition Elements

,

280W Ceramic Ignition Elements

Payment & Shipping Terms
Minimum Order Quantity
10
Packaging Details
In cartons each containing 20 boxes
Delivery Time
5-8 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000PCS/Week
Product Description

Candle Ceramic Pellet Stove Edilkamin Palazzetti Cast Iron Flame



Introducing the Kairui ceramic biomass igniter range, an advance in ignition technology for solid wood fuels.



Brief description

Ceramic ignition elements (glow igniters) have a much longer service life and a much higher ignition rate than conventional steel igniters. By shortening the ignition process, the power consumption is also significantly reduced. Ceramic igniters reach a higher temperature much faster and thus also ignite pellets much faster.



230V Ceramic Ignition Elements Candle Ceramic Pellet Stove Edilkamin Palazzetti Cast Iron Flame 0230V Ceramic Ignition Elements Candle Ceramic Pellet Stove Edilkamin Palazzetti Cast Iron Flame 1230V Ceramic Ignition Elements Candle Ceramic Pellet Stove Edilkamin Palazzetti Cast Iron Flame 2



Specification

Product Name

Candle Ceramic Pellet Stove Edilkamin Palazzetti Cast Iron Flame

Size φ11.5*106mm
Voltage 230V(120V)
Power 280W
Cable white fiberglass insulated 0.75 mm² cable
Lead In a ф 0. 5mm of Nickel wire(The length depends on the customer)
Application Pellet stove/boiler



230V Ceramic Ignition Elements Candle Ceramic Pellet Stove Edilkamin Palazzetti Cast Iron Flame 3



Glow Igniter Advantage

Ready assembled,easy-to-install systems. The high-temperature heating element in a temperature-resistant ceramic socket.

Space-saving, noiseless, and impervious to overheating (in case the blower fails)

Extremely long-lasting and resilient: Lifetime up to 100,000 cycles.

Minimal energy consumption.

Completely electrically insulated.

* No exposed electrical contacts
* No sensitive welding points



Rapid heating of the hot air both inside and outside.

By shortening the ignition process, the power consumption is also significantly reduced.

230V Ceramic Ignition Elements Candle Ceramic Pellet Stove Edilkamin Palazzetti Cast Iron Flame 4

Application

Pellet igniters are widely used in biomass burning system, esp. in pellet stoves and barbecue grills.

It has a high efficiency(more than 90%)of ignition and very easy to install before operating.

•Wood pellet stove
•Wood pellet boiler
•Wood pellet burner
•Wood chips burner
•Straw burner
•Other biomass burner



Our service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.



Company profile

Kairui Company specialises in ceramic hot surface igniters and has many years experience of working closely with customers to develop bespoke solutions for innovative appliance manufacturers. Kairui are a trusted manufacturer of hot surface ceramic ignition products to many industry sectors.
