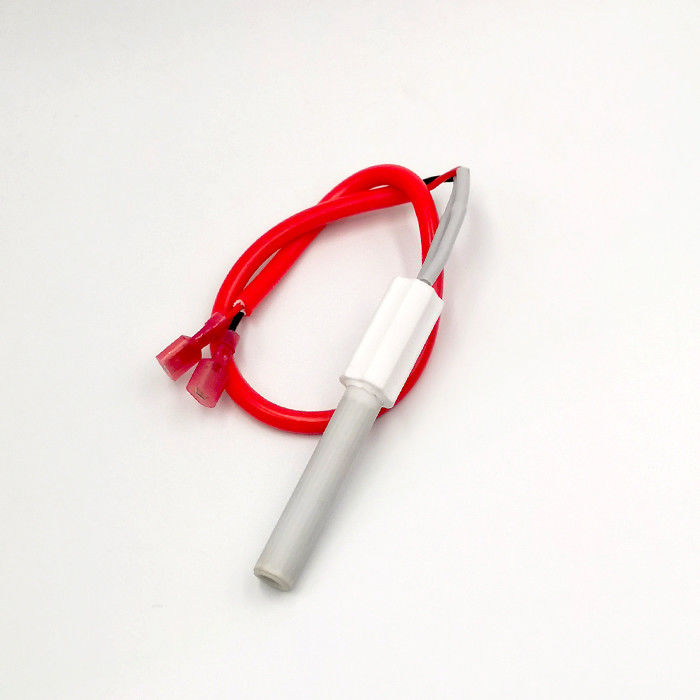

95%Al2O3 Aluminum Ceramics Ceramic Spark Plug/Glow Igniter for Aduro
  • 95%Al2O3 Aluminum Ceramics Ceramic Spark Plug/Glow Igniter for Aduro
  • 95%Al2O3 Aluminum Ceramics Ceramic Spark Plug/Glow Igniter for Aduro
  • 95%Al2O3 Aluminum Ceramics Ceramic Spark Plug/Glow Igniter for Aduro

95%Al2O3 Aluminum Ceramics Ceramic Spark Plug/Glow Igniter for Aduro

Place of Origin China
Brand Name KRHX
Certification CE / ROHS
Model Number KR-SA
Product Details
Material:
Aluminum Ceramics
Max Working Temperature:
600-1000℃
Feature:
Fast Ignition
Voltage:
120V/230V
Power:
180-280W
Application:
Pellet Stoves / Boilers
Dimension(L*W*H):
11.5*93 Mm
Flange:
Ceramic Flange
Wire:
Silicone Braided Wire
Heating Element:
95%Al2O3
Highlight:

Aduro Ceramic Spark Plug

,

95%Al2O3 Ceramic Spark Plug

,

Glow Igniter Ceramic Spark Plug

Payment & Shipping Terms
Minimum Order Quantity
10
Packaging Details
In cartons each containing 20 boxes
Delivery Time
5-8 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000PCS/Week
Product Description

Ceramic Spark plug / glow Igniter for Aduro



Introducing the Kairui ceramic biomass igniter range, an advance in ignition technology for solid wood fuels.

Ceramic Igniter for pellet stoves, designed to ignite wood pellets and wood chips in stoves, boilers and burners.



This is a new style ceramic igniter. Ceramic igniters heat up faster and hotter than traditional metal igniters.

This creates heat with no direct igniter contact meaning your igniter will last much longer and stand up to heavier use.



95%Al2O3 Aluminum Ceramics Ceramic Spark Plug/Glow Igniter for Aduro 0



Specification

Product Name

Ceramic Spark plug/glow Igniter

Size φ11.5*93mm
Voltage 120V, 230V
Power 180-300W
Flange Ceramic flange
Life span more than 10,000 ON/OFF cycles
Wire L 330mm
Application Yoder smokers Pellet stove



Advantage

Long life, Free replacement within 2 years

No leakage when working continuossly.

Timing of ignition with 90 seconds.

On-off 10,000 cycle without fault.

OEM order are available for all kinds of igniter.







Download Ceramic Heating Element Documents .pdf
