120V 300W Electric Pellet Igniter with ALLEN Set Screw and Unthreaded Collar Flange
  • 120V 300W Electric Pellet Igniter with ALLEN Set Screw and Unthreaded Collar Flange
  • 120V 300W Electric Pellet Igniter with ALLEN Set Screw and Unthreaded Collar Flange
  • 120V 300W Electric Pellet Igniter with ALLEN Set Screw and Unthreaded Collar Flange
120V 300W Electric Pellet Igniter with ALLEN Set Screw and Unthreaded Collar Flange

120V 300W Electric Pellet Igniter with ALLEN Set Screw and Unthreaded Collar Flange

Place of Origin China
Brand Name KRHX
Certification CE
Model Number KR-TQ
Product Details
Max Working Temperature:
Up To 980℃
Diameter:
Ø9.7mm
Key Selling Points:
Long Service Life
Application:
Solid Fuel Pellet Stoves
Ignition Method:
Electric
Cable:
Heat Shrinkable Tube
Hetaing Element:
Ceramic
Wire:
13'' MICA Insulated Leads
Connectors:
Nlok Connectors
Flange:
Unthreaded Collar
Highlight:

Unthreaded Collar Flange Electric Pellet Igniter

,

120V Electric Pellet Igniter

,

300W Electric Pellet Igniter

Payment & Shipping Terms
Minimum Order Quantity
10 Pieces
Price
/
Packaging Details
Packing: Each igniterr to be packed in a box, with 100 boxes to a carton.
Delivery Time
3-5 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability
1000 pieces per week
Product Description

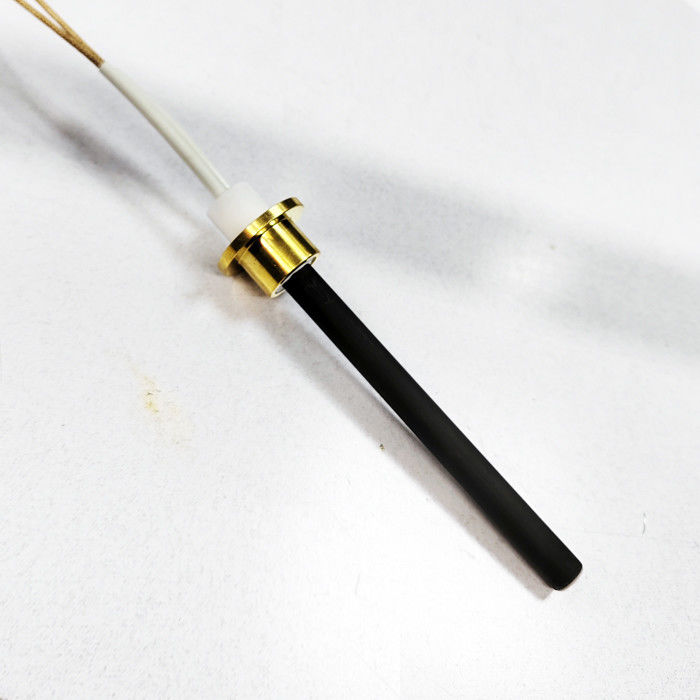

Pellet Igniter 120V 300W with ALLEN set Screw





Replacement (Non-Threaded) igniter for Osburn, Drolet, PSG, Flame, and Enerzone pellet stoves.

This igniter features Advanced Ceramic, Fast Ignition, and Higher Operating Temperature.



Specification



Size

Diameter: 9.7 mm.

Total length: 130mm.



Power



300 Watts.



Maximum temperature



970 ° C



Application

Pellet stoves



Tested

for over 10,000 ON / OFF cycles, with fast ignition times.



Flange

brass unthreaded collar



Certification



CE, ROHS



Product show



120V 300W Electric Pellet Igniter with ALLEN Set Screw and Unthreaded Collar Flange 0

120V 300W Electric Pellet Igniter with ALLEN Set Screw and Unthreaded Collar Flange 1



Connectors at the end of the wires - /4'' Female fast -on insulated quick connectors


120V 300W Electric Pellet Igniter with ALLEN Set Screw and Unthreaded Collar Flange 2



Dry burn test



120V 300W Electric Pellet Igniter with ALLEN Set Screw and Unthreaded Collar Flange 3



Fits the following Osburn pellet stove models:

  • Hybrid-35MF Insert
  • Hybrid-45MF


Fits the Following models of Drolet Stoves

  • Eco 35 (Make sure your current igniter is a set screw style and NOT threaded)
  • Eco 45



Ceramic igniters advantage

120V 300W Electric Pellet Igniter with ALLEN Set Screw and Unthreaded Collar Flange 4

Tags:

Ceramic Biomass Igniter,

Pellet Ceramic Igniter,

Pellet Stove Igniter
