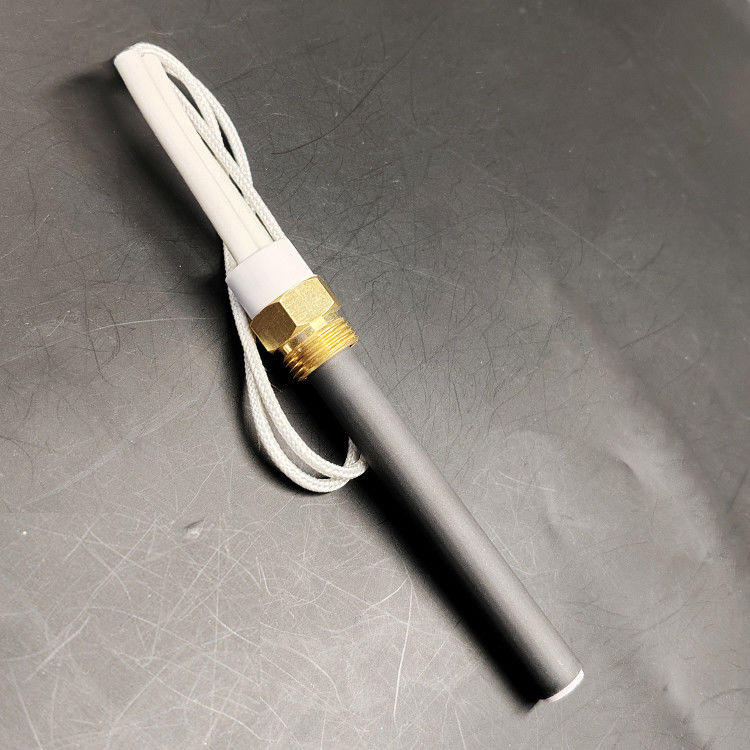

Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire
  • Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire
  • Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire
  • Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire
  • Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire

Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire

Place of Origin China
Brand Name KRHX
Certification CE
Model Number KR-W4
Product Details
Name:
230v And 300w Pellet Resistance Ceramic Cartridge
Max Working Temperature:
600-1000℃
Feature:
Fast Heating
Voltage:
230V
Power:
250-330W
Application:
Extraflame Stoves / Boilers
Dimension(L*W*H):
11.5*106 Mm
Time To Ignition:
About 90 Seconds
Terminal:
Ultrasonic + Crimping
Lead Wire:
30cm Customized
Highlight:

300W Pellet Resistance Ceramic Cartridge

,

230V Pellet Resistance Ceramic Cartridge

,

30cm Pellet Resistance Ceramic Cartridge

Payment & Shipping Terms
Minimum Order Quantity
10
Packaging Details
In cartons each containing 20 boxes
Delivery Time
5-8 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000PCS/Week
Product Description

230V and 300W pellet resistance ceramic cartridge



Size



Diameter: 11.5 mm.

Total length: 106mm.

Bottom length: 80 mm.



Power



250-280 Watts.



Maximum temperature



970 ° C



Application

Resistance,

ignition glow plug for ceramic pellet stoves, suitable for pellet ignition and wood chips for stoves, boilers and burners.



Tested



for over 10,000 ON / OFF cycles, with fast ignition times.



Flange



G3/8 brass flange



Mounts on stoves



Central heating boilers

PELLASX pellet burners.





Detailed Images



Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire 0

Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire 1

Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire 2



* Installation

1. The igniter is more than 10mm away from the bottom of the metal tube

2. The igniter must not be exposed to direct flames. This can cause the heating element to directly leak current during operation, leading to circuit tripping.

3. Be sure to leave a minimum 3mm gap around the ceramic igniter and the metal tube.



Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire 3



Related Products

Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire 4Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire 5Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire 6



φ8.8*71mm                                 φ9.3*81mm                                    φ11.5*93mm

12V 80W                                      110V 110W                                    120V 280W





Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire 7Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire 8Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire 9



φ11.5*93mm                                φ11.5*93mm                                  φ11.5*93mm

230V 230W                                   220V 240-300W                          120v300W





Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire 10Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire 11Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire 12



φ9.3*71mm                                 φ11.5*93mm                                  φ11.5*106mm

12V 110W                                   120V 280W                                    120V 300W
