Ceramic Igniters
>
|
|
| Place of Origin | China |
| Brand Name | KRHX |
| Certification | CE |
| Model Number | KR-G3T-B |

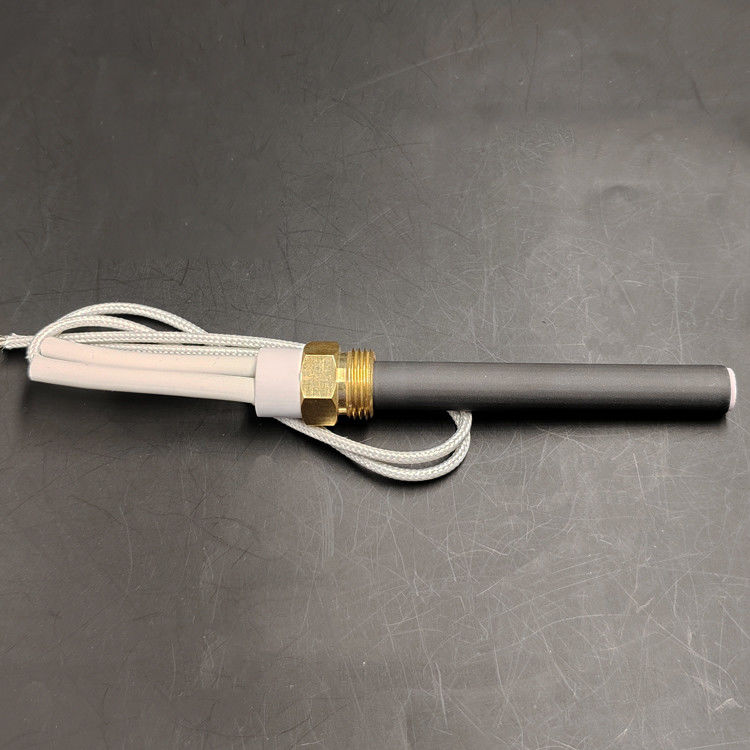

Ceramic igniter for pellet central heating burner
500W Cartridge Heater: Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry, etc
Specification
| Product Name | Ceramic igniter for pellet central heating burner |
| Size | φ11.5*106mm |
| Voltage | 230V |
| Power | 300W |
| Flange | Brass G3/8 screw |
| Cable | 350mm |
| Lead | In a ф 0. 5mm of Nickel wire(The length depends on the customer) |
* Installation
1. The igniter is more than 10mm away from the bottom of the metal tube
2. The igniter must not be exposed to direct flames. This can cause the heating element to directly leak current during operation, leading to circuit tripping.
3. Be sure to leave a minimum 3mm gap around the ceramic igniter and the metal tube.
Application
1: Boiling water because of flange
2: Patient Comfort heating used in medical devices
3: Mold die and platen heating
4: Seal bars used in packaging equipment
5: Heating of hot stamps.
