Glow Plug Ceramic Heating Element 330W 230V For Extraflame Stoves / Boilers
  • Glow Plug Ceramic Heating Element 330W 230V For Extraflame Stoves / Boilers
  • Glow Plug Ceramic Heating Element 330W 230V For Extraflame Stoves / Boilers

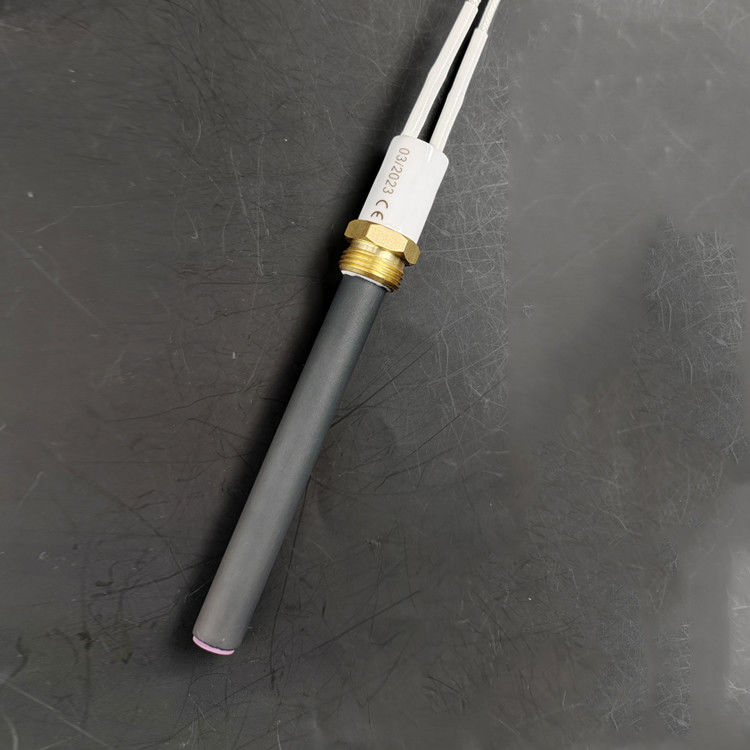

Glow Plug Ceramic Heating Element 330W 230V For Extraflame Stoves / Boilers

Place of Origin China
Brand Name KRHX
Certification CE
Model Number KR-W4
Product Details
Name:
Glow Plug – Ceramic Heating Element 330W 230V For La Nordica Extraflame Stoves / Boilers
Max Working Temperature:
600-1050℃
Feature:
Fast Heating
Voltage:
230V
Power:
300-330W
Application:
Extraflame Stoves / Boilers
Dimension(L*W*H):
11.5*115 Mm
Time To Ignition:
About 90 Seconds
Terminal:
Ultrasonic + Crimping
Lead Wire:
30-50cm Customized
Highlight:

Glow plug Ceramic heating element

,

boilers Ceramic heating element

,

230V Ceramic heating element

Payment & Shipping Terms
Minimum Order Quantity
10
Packaging Details
In cartons each containing 20 boxes
Delivery Time
5-8 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000PCS/Week
Product Description

Glow plug – Ceramic heating element 330W 230V for La Nordica Extraflame stoves / boilers



Introducing the Kairui ceramic biomass igniter range, an advance in ignition technology for solid wood fuels.



Brief description

Ceramic Igniter for pellet stoves, designed to ignite wood pellets and wood chips in stoves, boilers and burners. Tested for more than 10,000 ON/OFF cycles, with rapid ignition times.



Glow Plug Ceramic Heating Element 330W 230V For Extraflame Stoves / Boilers 0



Specification

Product Name

Glow plug – Ceramic heating element 330W 230V for La Nordica Extraflame stoves / boilers

Size Diameter: φ11.5
Total length: 115 mm
Length under stop: 90 mm
Voltage 230V
Power 300-330W
Cable 500mm (white fiberglass insulated 0.75 mm² cable)
Lead In a ф 0.5mm of Nickel wire(The length depends on the customer)
Application Compatible with Extraflame stoves / boilers



Advantage

Long life, Free replacement within 2 years

No leakage when working continuossly.

Timing of ignition with 90 seconds.

On-off 10,000 cycle without fault.

OEM order are available for all kinds of igniter.



Application

Pellet igniters are widely used in biomass burning system, esp. in pellet stoves and barbecue grills. It has a high efficiency(more than 90%)of ignition and very easy to install before operating.

• Compatible with Extraflame stoves / boilers (002271140 ex 002271070 – KH74058): HP15 EVO, HP22 EVO, HP30 EVO, Amika, Debby, Debby CX, Comfort Idro L80, Diadema Idro, Diadema ACS Idro, Isidora idro H16, Isidora idro H20, Liliana Idro, Melinda Idro 2.0, Melinda Idro Steel 2.0,

Also compatible with stoves:

UNGARO (KH67229)
