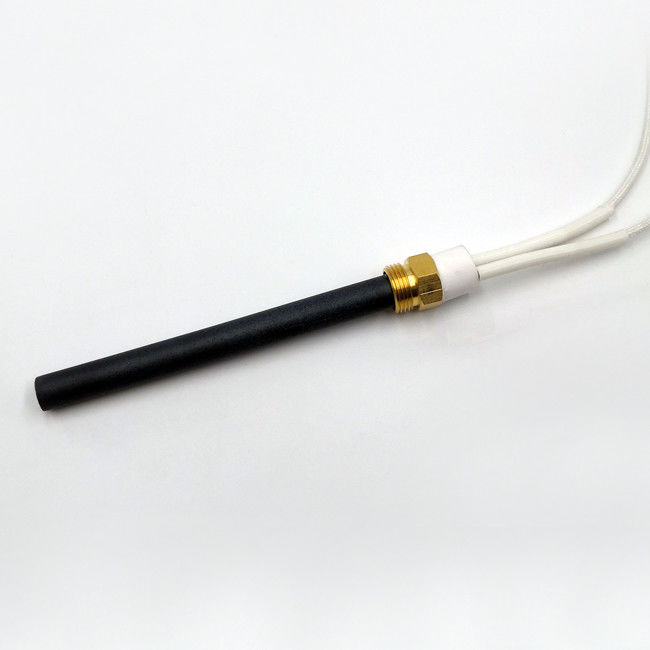

Stove Ceramic Pellet Igniter Ignition Resistance 350W
  • Stove Ceramic Pellet Igniter Ignition Resistance 350W
  • Stove Ceramic Pellet Igniter Ignition Resistance 350W
  • Stove Ceramic Pellet Igniter Ignition Resistance 350W
  • Stove Ceramic Pellet Igniter Ignition Resistance 350W

Stove Ceramic Pellet Igniter Ignition Resistance 350W

Place of Origin China
Brand Name KRHX
Certification CE
Model Number KR-W2
Product Details
Name:
Stove Ignition Resistance 350W
Max Working Temperature:
1000°C
Voltage:
220V, 230V, 240V
Power:
350W
Diameter:
Ø11.5mm
Total Length:
172mm
Threaded Fitting:
Ø3/8
Cable Length:
500mm
Application:
Pellet Stove, Boiler
Highlight:

Stove Ceramic Pellet Igniter

,

Ceramic Pellet Igniter 350W

,

Burners Ignition Pellet

Payment & Shipping Terms
Minimum Order Quantity
10
Packaging Details
In cartons each containing 20 boxes
Delivery Time
5-8 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000PCS/Week
Product Description

Stove ignition resistance 350W



Stove ignition resistance 350W for boilers, stoves and burners. pellets and wood chips.rocess.



Stove Ceramic Pellet Igniter Ignition Resistance 350W 0



Specification

Product Name Stove ignition resistance 350W
Size φ11.5*145mm
Voltage 230V
Power 300W
Flange Brass G3/8 screw
Cable 300-800mm
Lead In a ф 0. 5mm of Nickel wire(The length depends on the customer)
Application Pellet boiler, Pellet stove



Ceramic lighting resistor for pellet stoves, designed to light pellets and wood chips for stoves boilers and burners. Tested for more than 10,000 ON/OFF cycles, with rapid ignition times.



Stove Ceramic Pellet Igniter Ignition Resistance 350W 1

Technical Features:

The stove ignition resistance has a power of 350W. 3/8" Thread Diameter 11.5 mm.

Length to stop 120 mm, total 147 mm
Special anti-caloric cable connection with high temperature protection
The spark plug for ignition of wood pellets stoves, is valid for major brands of stoves and caloric equipment
Our Pellet ignition resistor is universal and compatible with all stoves that match the measurements, power and

characteristics indicated; please check the dimensions carefully



Application

* Wood pellet stove

* Wood pellet boiler

* Wood pellet burner

* Wood chips burner

* Straw burner

* Other biomass burner



Stove Ceramic Pellet Igniter Ignition Resistance 350W 2
