Customized 250W Pellet Stove Lighter Replacement with Lead Wire
  • Customized 250W Pellet Stove Lighter Replacement with Lead Wire

Customized 250W Pellet Stove Lighter Replacement with Lead Wire

Place of Origin China
Brand Name KRHX
Certification CE
Model Number KR-H2-B
Product Details
Name:
Alumina Ceramic Igniter
Max Working Temperature:
600-1100℃
Feature:
Sustainable
Voltage:
230V
Power:
250W
Application:
Pellet Stove
Dimension(L*W*H):
10.5*102 Mm
Time To Ignition:
60 – 90 Seconds
Cable:
Heat Shrinkable Tube
Lead Wire:
Customized
High Light:

Pellet Stove Lighter Replacement

,

Customized Pellet Stove Lighter

,

250W Pellet Stove Lighter

Payment & Shipping Terms
Minimum Order Quantity
10
Packaging Details
In cartons each containing 20 boxes
Delivery Time
5-8 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000PCS/Week
Product Description

Pellet stove lighter replacement



Brief description

Aluminium oxyde (alumina) ceramic heating element are developed based on ceramic lamination technologies: internal heating elements are protected from oxidation in air due to a sintered one-piece ceramic body construction.

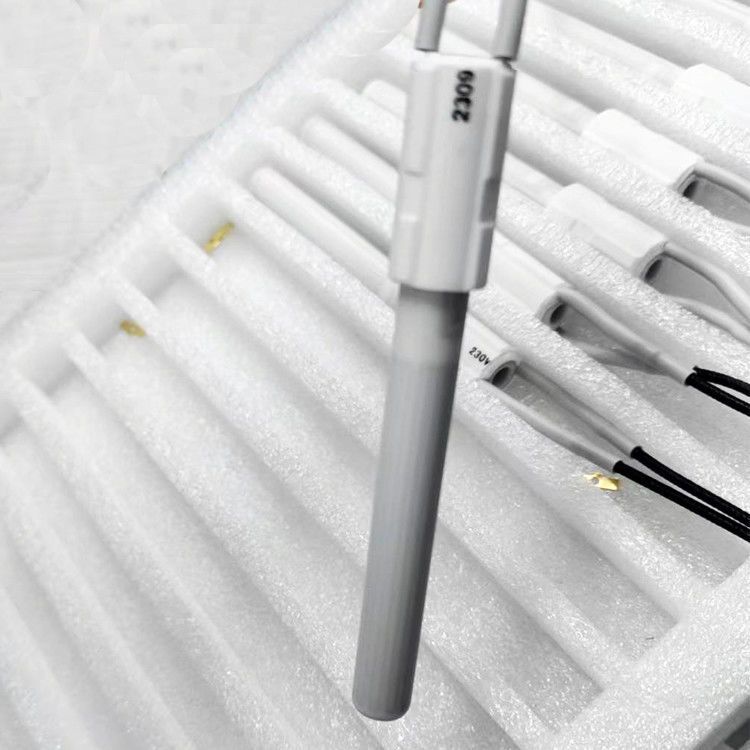

Customized 250W Pellet Stove Lighter Replacement with Lead Wire 0



How does a pellet stove igniter work?

A pellet stove ceramic ignitor works the same way as an electric stove's heating element, or a hair dryer heating element.

The extremely high heat from the ceramic ignitor surface will heat the air and will then ignite the extremely flammable wood pellets.

Usualy air blowed in the burner or in the grate nead to reach 200 to 300°C to make wood pellet spontaneously ignite.

Thanks to ceramic igniter, most of modern pellet stove are now achieving an ignition time between 50s and 120s (first sustainable flame).



Specification

Product Name Pellet stove lighter replacement
Size φ10.5*102mm
Voltage 230V
Power 250W
Cable white fiberglass insulated 0.75 mm² cable
Lead In a ф 0. 5mm of Nickel wire(The length depends on the customer)
Application Hermetic stoves,  Palazzetti stove



Ceramic alumina heater technology benefits

* A fraction of the energy consumption compared to conventional cartridge or element heater
Long life, Free replacement within 2 years
* Time to ignition 60~90 seconds
* Tested to 100,000 cycles
* Easy to install and retrofit
* Available in 120V / 220/240VAC
* Impervious to oxidation and corrosion
* Ignite kerosene, wood chips, split logs, coal briquettes or other biomass, corn etc



Application

* Wood pellet burner /Wood chips burner /Straw burner /Other biomass burner;
* Small scale biomass industrial furnace ignition

* Fan heater
* Incense burner
