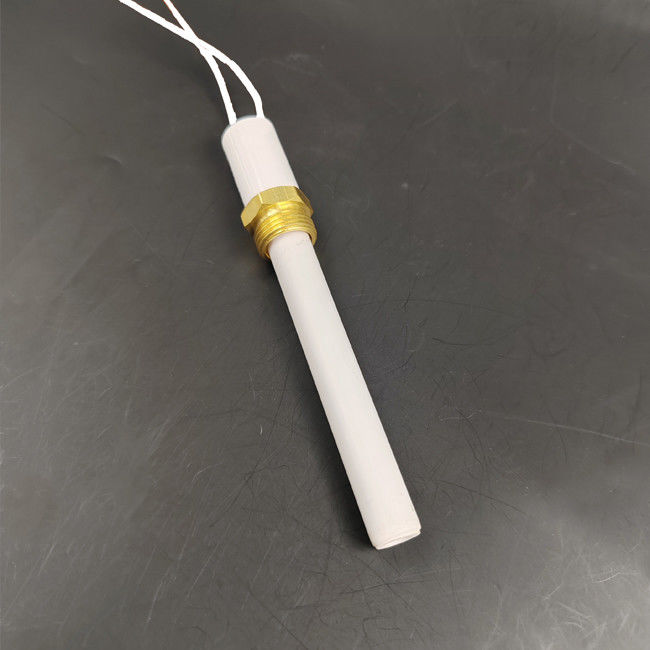

Best Ceramic Heater (Igniter) for Pellet Stove
  • Best Ceramic Heater (Igniter) for Pellet Stove
  • Best Ceramic Heater (Igniter) for Pellet Stove

Best Ceramic Heater (Igniter) for Pellet Stove

Place of Origin China
Brand Name KRHX
Certification CE
Model Number KR-W4
Product Details
Name:
Ceramic Heater (Igniter)
Max Working Temperature:
600-1100℃
Feature:
Sustainable
Voltage:
120V, 230V
Power:
260-300W
Application:
Pellet Stove
Dimension(L*W*H):
11.5*106 Mm
Time To Ignition:
60 – 90 Seconds
Cable:
Heat Shrinkable Tube
Lead Wire:
Customized
Payment & Shipping Terms
Minimum Order Quantity
10
Packaging Details
In cartons each containing 20 boxes
Delivery Time
5-8 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000PCS/Week
Product Description

Best Ceramic Heater (Igniter) for Pellet Stove



Introducing the Kairui ceramic biomass igniter range, an advance in ignition technology for solid wood fuels.



Brief description

KAIRUI® Ceramic Heater (igniter) for Pellet stove,which is MCH process, refers to Metal Ceramic Heater.The main material is 95% AL2O3.

Ceramic Heater for Pellet stove are produced by implementing ceramic lamination processes.

Due to the compactness, high power and rapid heating speed .Ceramic Heater can provide higher reliability than ever before.



For very rapid ignition or when it is necessary to achieve higher temperature, Kairui ceramic heaters for biomass and pellet stoves.



FEATURES:

- Temperature of the element 1000°C in continuous operation or interchanging.

- Resistant to oxidation and corrosion.

- Simplified method of heat exchange by the passage of air both externally and within the air



Best Ceramic Heater (Igniter) for Pellet Stove 0



Specification

Product Name

Best Ceramic Heater (Igniter) for Pellet Stove

Size φ11.5*106mm
Voltage 230V
Power 300W
Cable white fiberglass insulated 0.75 mm² cable
Lead In a ф 0. 5mm of Nickel wire(The length depends on the customer)
Application Pellet stove/boiler



Advantage

Long life, Free replacement within 2 years

No leakage when working continuossly.

Timing of ignition with 90 seconds.

On-off 10,000 cycle without fault.

OEM order are available for all kinds of igniter.



Application

Pellet igniters are widely used in biomass burning system, esp. in pellet stoves and barbecue grills. It has a high efficiency(more than 90%)of ignition and very easy to install before operating.

•Wood pellet stove
•Wood pellet boiler
•Wood pellet burner
•Wood chips burner
•Straw burner
•Other biomass burner



Our service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.



On request we can supply Ceramic quartz heaters with CE approval.

We develop also ceramic heaters in quartz with low voltage as for example 24V.

We develop also customized heaters according to our customers needs.
