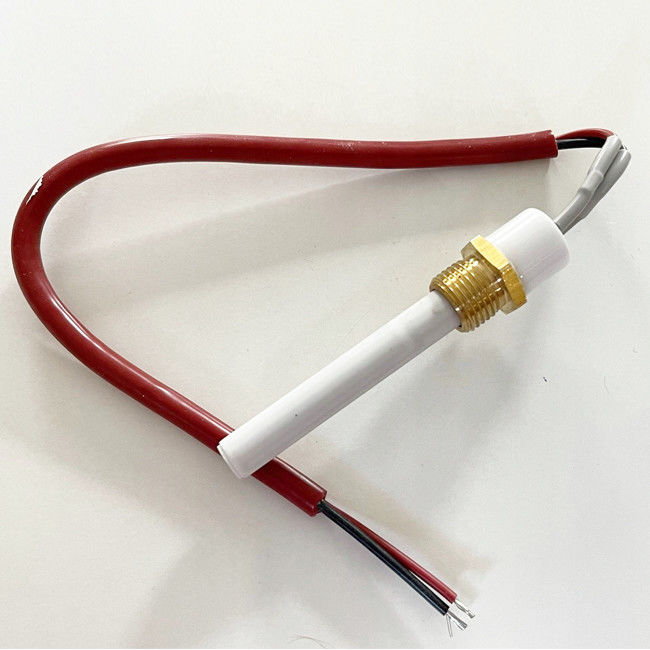

Ceramic Threaded Glow Igniter Igniter Ignition Element
Introducing the Kairui ceramic biomass igniter range, an advance in ignition technology for solid wood fuels.
Original ceramic igniter
They are one of the earliest and until recently the most popular resistors for pellet burners and stoves. For their production special high-temperature ceramics are used, and the heater itself is an open type and the reotan is discovered for the most part. This makes ceramic lighters more dangerous to use and easier to burn. The same happens with careless use and contact with metal objects. Ceramic igniters use the effect of radiant heat, which heats the ambient air and thus indirectly ignites the pellets. Ceramic heaters are very efficient and economical and have almost 2 times higher temperature than traditional metal resistors. Popular types are round and flat ceramic heater.
Specification
| Product Name |
Ceramic Threaded Glow Igniter Igniter Ignition Element |
| Size | φ11.5 x 93 mm. |
| Voltage | 230V |
| Power | 180-200W |
| Flange | M16 thread |
| Cable | 300-800mm high temperature wire |
| Lead | In a ф 0. 5mm of Nickel wire(The length depends on the customer) |
| Application | PELLASX pellet burners |
Application
The igniter is used in the following burners and boilers:
- PellasX
- Galmet (disambiguation)
- Kotłospaw
- Enka
- Bush
* We can provide:
1. 100% on time shipment
2. 100% payment protection
3. 100% product quality protection
Company profile
Kairui Corporation specialises in ceramic hot surface igniters and has many years experience of working closely with customers to develop bespoke solutions for innovative appliance manufacturers. Kairui are a trusted manufacturer of hot surface ignition products to many industry sectors.
