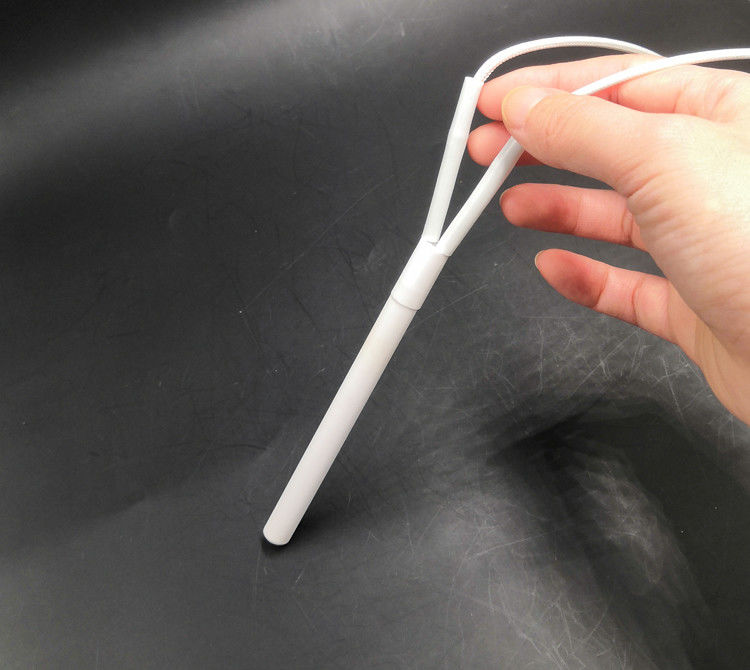

Home Hot Surface ignitor Upgraded Replacement Hot Rod ignitor Kit
  • Home Hot Surface ignitor Upgraded Replacement Hot Rod ignitor Kit
  • Home Hot Surface ignitor Upgraded Replacement Hot Rod ignitor Kit
  • Home Hot Surface ignitor Upgraded Replacement Hot Rod ignitor Kit

Home Hot Surface ignitor Upgraded Replacement Hot Rod ignitor Kit

Place of Origin China
Brand Name KRHX
Certification CE
Model Number KR-D3
Product Details
Name:
Hot Surface Ceramic Igniter
Max Working Temperature:
600-1100℃
Feature:
Sustainable
Voltage:
110V
Power:
120W(±10%)
Application:
Pellet Stove
Dimension(L*W*H):
φ10*120 Mm
Hetaing Element:
Ceramic
Lead Wire:
PTFE
Payment & Shipping Terms
Minimum Order Quantity
10
Packaging Details
In cartons each containing 20 boxes
Delivery Time
5-8 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000PCS/Week
Product Description

Home Hot Surface ignitor Upgraded Replacement Hot Rod ignitor Kit



Brief description

This ceramic upgrade igniter is bringing the older Traeger’s into the modern era of BBQ technology.

This kit offers people with AC Traeger’s the chance to upgrade to a higher quality, with newer technology igniter.

That lasts longer and uses less power.

Many of the top pellet grill manufacturers have gone to ceramic igniters within the last few years due to their increased reliability and longevity.
Ceramic igniters can handle the tortures of high heat better than their metal counter parts.

When metal heats and cools it can warp which causes it to break the coils inside.

Ceramic does not warp when heated and cooled, helping to protect the igniters life and longevity.

This igniter replaces all 200W AC Traeger Igniters.

This igniter is 120W, which is 80 watts less than the regular Traeger igniter, allowing it to be more energy efficient.



Home Hot Surface ignitor Upgraded Replacement Hot Rod ignitor Kit 0



Specification

Product Name

Home Hot Surface ignitor Upgraded Replacement Hot Rod ignitor Kit

Size φ10*120mm
Voltage 110V
Power 120W
Flange Ceramic
Connector Molex Electronic
Lead In a ф 0. 5mm of Nickel wire(The length depends on the customer)
Application Pellet boiler, Pellet stove



Home Hot Surface ignitor Upgraded Replacement Hot Rod ignitor Kit 1



Advantage

Long life, Free replacement within 2 years

No leakage when working continuossly.

Timing of ignition with 90 seconds.

On-off 10,000 cycle without fault.

OEM order are available for all kinds of igniter.



High temperature tests: Applied at 120V for 3min On/5min Off for over 100,000 cycles


Home Hot Surface ignitor Upgraded Replacement Hot Rod ignitor Kit 2



Test condition:
All values have been measured in the same condition as follow: Temperature: 23±1°C
Humidity rate: 25~80%
Atmospheric pressure: 101.3kPa~106kPa
Frequency: 50Hz



Application

* Wood pellet burner /Wood chips burner /Straw burner /Other biomass burner;
* 3D prinert
* Industrial drying equipment, electric Bonding liquid heater;
* Medical devices and other precise instrument.



   Kairui Company specialises in ceramic hot surface igniters and has many years experience of working closely with customers to develop bespoke solutions for innovative appliance manufacturers. Kairui are a trusted manufacturer of hot surface ceramic ignition products to many industry sectors.
