Sustainable Industrial Spark Plug Pellet Lighter For Pellet Stove
  • Sustainable Industrial Spark Plug Pellet Lighter For Pellet Stove

Sustainable Industrial Spark Plug Pellet Lighter For Pellet Stove

Place of Origin China
Brand Name KRHX
Certification CE
Model Number KR-W1
Product Details
Name:
Industrial Spark Plug Pellet Lighter
Max Working Temperature:
600-1100℃
Feature:
Sustainable
Voltage:
230V
Power:
280W(±10%)
Application:
Pellet Stove
Dimension(L*W*H):
11.5*106 Mm
Thread:
Brass G3/8
Cable:
Heat Shrinkable Tube
Lead Wire:
Customized
High Light:

Sustainable Industrial Spark Plug

,

Industrial Spark Plug Pellet Lighter

Payment & Shipping Terms
Minimum Order Quantity
10
Packaging Details
In cartons each containing 20 boxes
Delivery Time
5-8 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000PCS/Week
Product Description

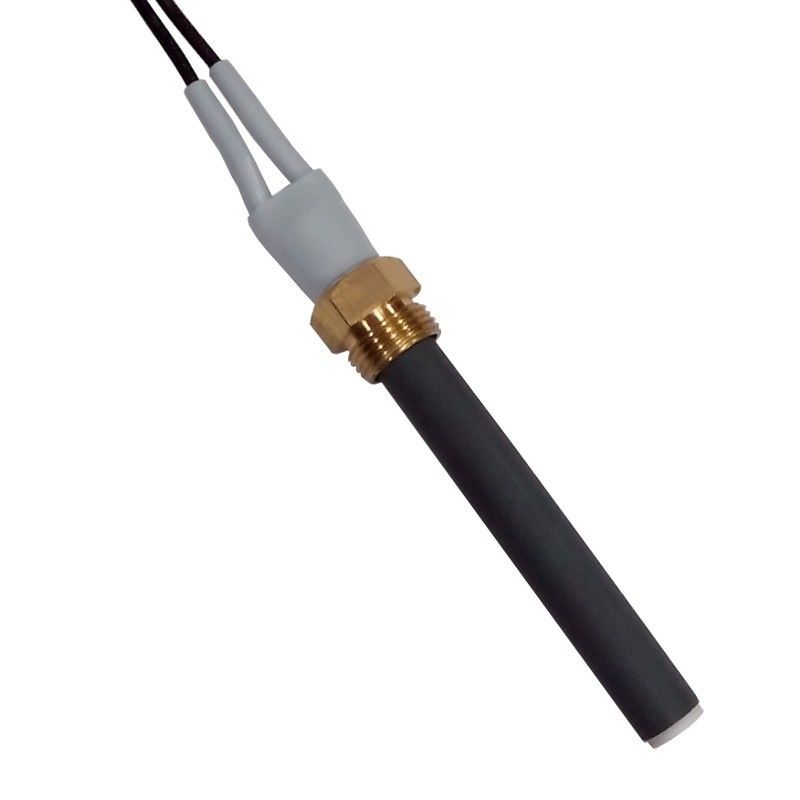

Industrial spark plug pellet lighter for Pellet Stove



Introducing the Kairui ceramic biomass igniter range, an advance in ignition technology for solid wood fuels.



Brief description

Ignition resistance, spark plug, or also called pellet lighter diameter: 10 mm | 280 watts, 230 volts, 106mm long and 3/8" thread.

It is valid for most Superior and Piazzetta pellet stoves.

Sustainable Industrial Spark Plug Pellet Lighter For Pellet Stove 0

Specification

Product Name Industrial spark plug pellet lighter for Pellet Stove
Size φ11.5*106mm
Voltage 230V
Power 280-300W
Flange Brass G3/8 screw
Heat shrinkable tube black; heat resistance 180°C
Cable silicone cable, heat resistance 180°C
Application Pellet boiler, Pellet stove



Advantage

Long life, Free replacement within 2 years

No leakage when working continuossly.

Timing of ignition with 90 seconds.

On-off 10,000 cycle without fault.

OEM order are available for all kinds of igniter.



Sustainable Industrial Spark Plug Pellet Lighter For Pellet Stove 1



Testing - On-off 10,000 cycle



Sustainable Industrial Spark Plug Pellet Lighter For Pellet Stove 2



Observations: This replacement usually has a life of 2 to 4 years (depending on the number of ignitions and humidity that exists in the place).

It is advisable to change it in a maximum of 4 years, to prevent it from stopping working in the middle of the winter season.

Once unsealed from its heat shrink bag, this product cannot be returned.





Do you need an ignition guarantee for your pellet stove?

No problem! Our pellet stove accessories are designed to provide functionality, safety and quality.

All you need to do is place the igniter in the container in the pellet combustion chamber to activate the combustion, making the pellet boiler easy to ignite.
