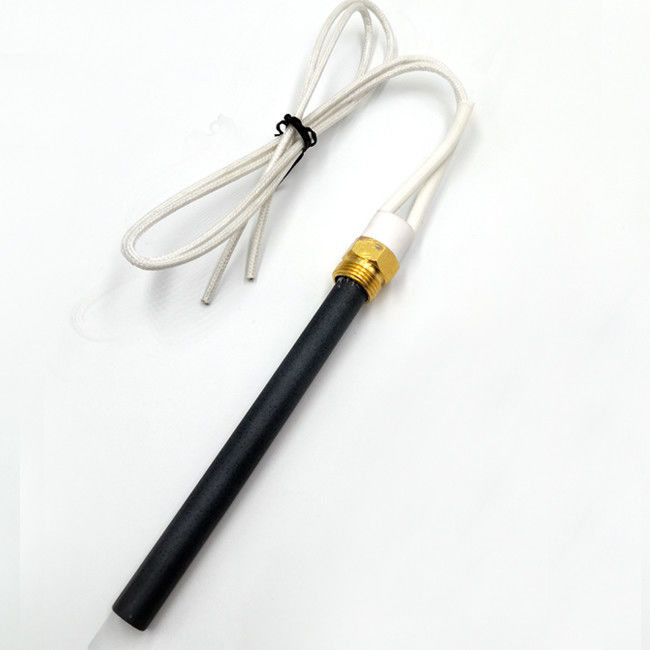

230V 300W cartridge Pellet Stove Resistance igniter/ignitor
Introducing the Kairui ceramic biomass igniter range, an advance in ignition technology for solid wood fuels.
A 230V 300W cartridge pellet stove resistance igniter, also known as an ignitor, is an electrical component used to ignite the pellets in a pellet stove. When electricity is supplied to the igniter, the heating element becomes hot, which ignites the pellets and starts the combustion process.
Specification
| Product Name | 230V 300W cartridge Pellet Stove Resistance igniter/ignitor |
| Size | φ11.5*145mm |
| Voltage | 230V |
| Power | 300W |
| Flange | Brass G3/8 screw |
| Cable | 300-800mm |
| Lead | In a ф 0. 5mm of Nickel wire(The length depends on the customer) |
| Application | Pellet boiler, Pellet stove |
Ceramic lighting resistor for pellet stoves, designed to light pellets and wood chips for stoves boilers and burners. Tested for more than 10,000 ON/OFF cycles, with rapid ignition times.
Ceramic Igniter for Wood Pellet Stove Advantages
● Compact, Lightweight and Energy Efficient
● High watt density, good thermal efficiency
● Withstand high temperature
● Superior Thermal Properties
● Rapid Heat Increase
● Excellent thermal conductivity and thermal compensation rate.
● Custom designed temperature distribution available
● High Reliability
● Superior dielectric strength and electrical insulation
● Longer life Circle due to oxidation-proof design
● Superior chemical resistance, corrosion-resistance
● Environmental Qualities
● ergy-saving due to the superior thermal efficiency
● Complying with RoHS requirements and other environmental requirements Alumina Ceramic Heaters doesn’t contain harmful materials(like lead,cadmium,mercury,hexavalent chrominu and so on)
● High cost performance
Application
* Wood pellet stove
* Wood pellet boiler
* Wood pellet burner
* Wood chips burner
* Straw burner
* Other biomass burner
