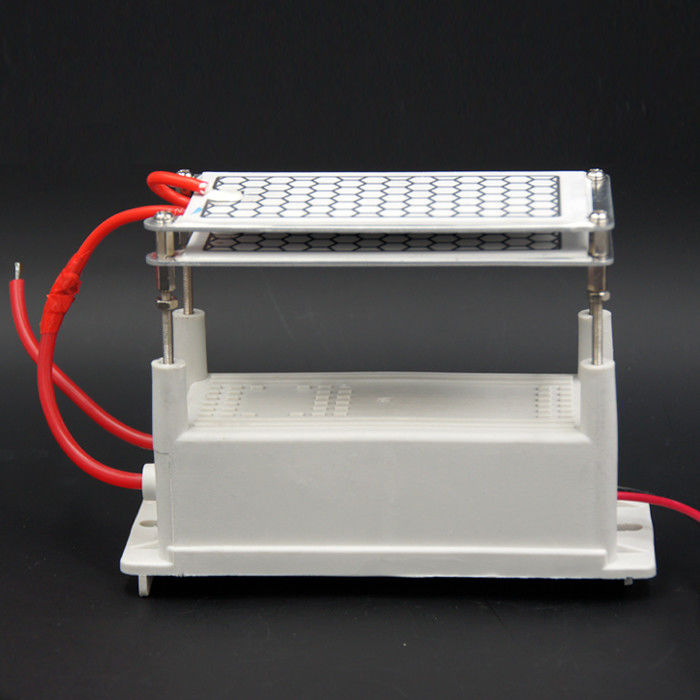

10G Ozone Generator Air Purifier Parts Ceramic Plate Cell Air Purifier Module
  • 10G Ozone Generator Air Purifier Parts Ceramic Plate Cell Air Purifier Module
  • 10G Ozone Generator Air Purifier Parts Ceramic Plate Cell Air Purifier Module
  • 10G Ozone Generator Air Purifier Parts Ceramic Plate Cell Air Purifier Module

10G Ozone Generator Air Purifier Parts Ceramic Plate Cell Air Purifier Module

Place of Origin CHINA
Brand Name KRHX
Certification CE/ROHS
Model Number KR-OZG-10G
Product Details
Ozone Output:
10g
Input Voltage:
AC220V/AC110V
Service Life:
6000-8000 Hours
Producing Ozone:
Corona Discharge
Application:
Commercial Ozone Generator, Household Ozone Generator
Certification:
CE, ROHS
High Light:

10G Ozone Generator

,

Ozone Generator Air Purifier Parts

Payment & Shipping Terms
Minimum Order Quantity
10 SET
Packaging Details
Ozone Generator are packed in carton, 10 boxes to one carton.
Delivery Time
5-8 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
5000 Set/Week
Product Description

10G Ozone Generator Air Purifier Parts Ceramic Plate Cell Air Purifier Module

Description
This integrated plate air purifier uses an upgraded micro‑gap medium beehive discharge technology.
The industrial has low power consumption, so it will help you save power.
The is suitable for dryers, dishwashers, refrigerators, electronic shoe cabinets, air filters, etc.
The ceramic is made of aluminum alloy and ceramic composite material, it is anti‑falling, shockproof and has a longer service life.
This air purifier benefits from high pressure. Please use dry air or oxygen in the air as the original material for generation.


Technical parameter

Item 10G Ozone Generator Air Purifier Parts Ceramic Plate Cell Air Purifier Module
Ozone output 10g/hr
Size of ozone plate 105*50*1.0mm
Dimension(L*W*H) 5.7”*2.2”*3.0”(156*56*62mm)
Voltage 110-120VAC
Generating Method Corona Discharge
Application Car, RV, Outdoor, Hotel, Garage, Commercial, Household
Weight 0.5KG


10G Ozone Generator Air Purifier Parts Ceramic Plate Cell Air Purifier Module 0

Test conditions:
1. Feed Gas: Dry air or oxygen source recommendated
2. Ambient temperature: ≤10℃, Humidity: <10% (Different temperature and humidity in the environment will affect the ozone output and concentration.)


Application
Ozone has disinfection, sterilization, in addition to the role of peculiar smell, at large ozone used in cold storage, granary, factories and other large space, in small specifications of ozone used to air purifier, refrigerator, washing machine and other household appliances and cars.

Attention must be paid to the following:
1 Cooling method: Air cooling for transformer and ceramic plate.
2 When ozone generators work, it is necessary to have cooling fans to blow the ceramic plates and ozone power supplies. When installing the power supply, please make sure there is 2-3cm high space between its bottom and the fixed board, so that heat on the bottom of the power supply can be radiated quickly.
3 This is a high voltage product. Do not touch it when it is working.
4 Usually after ozone sterilization, it needs 20-30 minutes to diffuse ozone before anyone enters. And only when the ozone concentration is or below 0.15ppm, it is permitted to enter.
5 The ozone output test data is based on 95% pure oxygen feeding and dew point -45°. Different temperature and humidity in the environment will affect the ozone output and concentration.
6 This item can work continuously for 20~30 minutes with air cooling. If it continues to work without any rest, the ozone output will decrease by degrees because ceramic plates are overheated.
7 When two high voltage wires are very close to each other, especially under moist circumstances or they touch, the wires will make a light and possibly lead that the insulation becomes discoloured even melts. The way to avoid this matter is to keep the two high voltage wires parallel or separate, at least untouched.
8 Usually when ozone generator is used for test, it will be better if the interval time between two tests is one minute. It is because the output voltage and start-up electric current is very very high, if it is started up and closed down frequently within several minutes, power supply is possible to be burned due to instant or instantaneous high current.
9 Deoxidized materials or objects should not be contacted with ozone for a long time.


PACKAGE
By carton packing / wooden case / could pack as customer's requirements!
Delivery time :3-10days

10G Ozone Generator Air Purifier Parts Ceramic Plate Cell Air Purifier Module 1

SHIPPING
Meanwhile, other shipping ways are available such as FedEx, UPS, TNT, EMS, China Post or Sea. Just let us know which one is best for you, we do all the left work.
10G Ozone Generator Air Purifier Parts Ceramic Plate Cell Air Purifier Module 2

10G Ozone Generator Air Purifier Parts Ceramic Plate Cell Air Purifier Module 3
10G Ozone Generator Air Purifier Parts Ceramic Plate Cell Air Purifier Module 4
