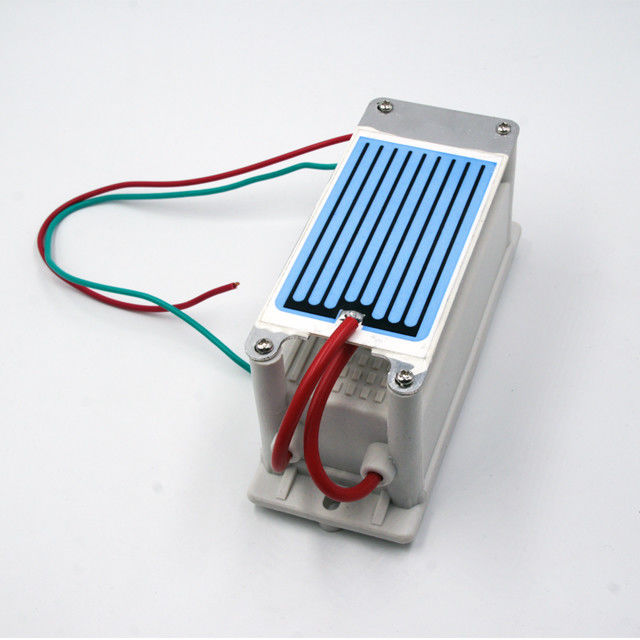

Corona Discharge Ceramic Ozone Generator 3.5g
  • Corona Discharge Ceramic Ozone Generator 3.5g

Corona Discharge Ceramic Ozone Generator 3.5g

Place of Origin CHINA
Brand Name KRHX
Certification CE/ROHS
Model Number KR-OZG-3.5G
Product Details
Keyword:
Ozone Air Sterilizer
Ozone Output:
3.5g/hr
Voltage:
110V, 220V
Lifspan:
6000-8000 Hours
Working:
Corona Discharge
Application:
Commercial Ozone Machine, Household Ozone Machine
Certification:
CE, ROHS Approved
High Light:

Corona Discharge Ceramic Ozone Generator

,

Ceramic Ozone Generator 3.5g/hr

,

ROSH Ceramic Ozone Generator

Payment & Shipping Terms
Minimum Order Quantity
10 SET
Packaging Details
Ozone Generator are packed in carton, 10 boxes to one carton.
Delivery Time
5-8 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
5000 Set/Week
Product Description

Corona Discharge Ceramic Ozone Generator 3.5g



Description

Ozone Output: 3.5 g/hr
Enter Voltage: AC220V / DC12V
Output Voltage: greater than 3kv
Energy Consumption:45W(220V)/ 37.5W(12V)
Ceramic measurement: 90mm*50mm*1.0(1pcs)

Size of ozone transformer: 145mm*55mm*41mm
Fuel Feeding: Dry Air or Oxygen
Ozone Producing Technique: Corona Discharge
Cooling Technique: Ambient Air Cooling



Options

Transportable, straightforward for skilled DIY use.
Low energy consumption
Protected, quiet and environment friendly.
Eliminates odors, Freshens stale air.
For automobile and residential use.



Corona Discharge Ceramic Ozone Generator 3.5g 0

Test conditions:

1. Feed Gas: Dry air or oxygen source recommendated
2. Ambient temperature: ≤10℃, Humidity: <10% (Different temperature and humidity in the environment will affect the ozone output and concentration.)



Application

It is used in household air purifier, air fresher, home air purifier, Dryer, dishwasher, shoe cabinet, household disinfectant cabinet, oxygen bar, dehumidifier, refrigerator, domestic appliance and so on.



Attention must be paid to the following:

1 Cooling method: Air cooling for transformer and ceramic plate.
2 When ozone generators work, it is necessary to have cooling fans to blow the ceramic plates and ozone power supplies. When installing the power supply, please make sure there is 2-3cm high space between its bottom and the fixed board, so that heat on the bottom of the power supply can be radiated quickly.
3 This is a high voltage product. Do not touch it when it is working.
4 Usually after ozone sterilization, it needs 20-30 minutes to diffuse ozone before anyone enters. And only when the ozone concentration is or below 0.15ppm, it is permitted to enter.
5 The ozone output test data is based on 95% pure oxygen feeding and dew point -45°. Different temperature and humidity in the environment will affect the ozone output and concentration.
6 This item can work continuously for 20~30 minutes with air cooling. If it continues to work without any rest, the ozone output will decrease by degrees because ceramic plates are overheated.
7 When two high voltage wires are very close to each other, especially under moist circumstances or they touch, the wires will make a light and possibly lead that the insulation becomes discoloured even melts. The way to avoid this matter is to keep the two high voltage wires parallel or separate, at least untouched.
8 Usually when ozone generator is used for test, it will be better if the interval time between two tests is one minute. It is because the output voltage and start-up electric current is very very high, if it is started up and closed down frequently within several minutes, power supply is possible to be burned due to instant or instantaneous high current.
9 Deoxidized materials or objects should not be contacted with ozone for a long time.



Package

First, the products are packed in small cartons and then packed in large cartons. The quantity of a whole carton is 32set, which can be made according to the customer's requirements. The quantity is different and the weight is different. Then, the products are packed and fixed with automatic packing machine.
