KRHX Ozone Ceramic Plate 1g/hr 12V Ozone Generator For Car
  • KRHX Ozone Ceramic Plate 1g/hr 12V Ozone Generator For Car
  • KRHX Ozone Ceramic Plate 1g/hr 12V Ozone Generator For Car
  • KRHX Ozone Ceramic Plate 1g/hr 12V Ozone Generator For Car

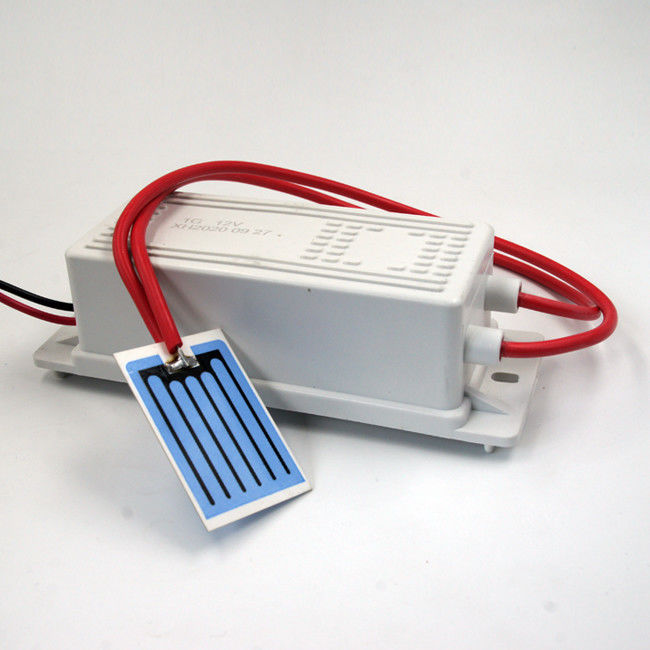

KRHX Ozone Ceramic Plate 1g/hr 12V Ozone Generator For Car

Place of Origin CHINA
Brand Name KRHX
Certification CE/ROHS
Model Number KR-OZG-1G
Product Details
Keyword:
Ozone Ceramic Plate
Ozone Output:
1g
Voltage:
12V
Lifspan:
6000-8000 Hours
Working:
Corona Discharge
Application:
Portable Ozone Machine
Certification:
CE, ROHS
Working Life:
More Than 7000 Hours
Formaldehyde Removing Charge:
99.90%
Highlight:

Ozone Ceramic Plate 1g/Hr

,

Ozone Generator 12V

,

12V Ozone Generator For Car

Payment & Shipping Terms
Minimum Order Quantity
10 SET
Packaging Details
Ozone Generator are packed in carton, 10 boxes to one carton.
Delivery Time
5-8 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
5000 Set/Week
Product Description

Ozone Ceramic Plate 12V Ozone Generator 1g With 1 Ceramic Plate Long Life Style



Description

► Ozone sterilization, no residues of toxic substances.
► For disinfection of public places, hospitals and factories and mines clean room, sterilization and various odor elimination.
► The use of Oxygen sterilization to taste, vitality is high, wide and fast, no dead fungicide.
► Removable, easy to use.



Technical parameter

Item Ozone Ceramic Plate 12V Ozone Generator 1g With 1 Ceramic Plate Long Life
Ozone output 1g/hr
Size of ozone plate 51*34*1.0mm
Size of ozone transformer 145mm*55mm*41mm
Voltage 12VAC, 110-120VAC,
Generating Method Corona Discharge
Application Car, RV, Outdoor, Hotel, Garage, Commercial, Household
Weight 0.5KG



KRHX Ozone Ceramic Plate 1g/hr 12V Ozone Generator For Car 0

Test conditions:

1. Feed Gas: Dry air or oxygen source recommendated
2. Ambient temperature: ≤10℃, Humidity: <10% (Different temperature and humidity in the environment will affect the ozone output and concentration.)



Application

It is used in household air purifier, air fresher, home air purifier, Dryer, dishwasher, shoe cabinet, household disinfectant cabinet, oxygen bar, dehumidifier, refrigerator, domestic appliance and so on.



Attention must be paid to the following:

1 Cooling method: Air cooling for transformer and ceramic plate.
2 When ozone generators work, it is necessary to have cooling fans to blow the ceramic plates and ozone power supplies. When installing the power supply, please make sure there is 2-3cm high space between its bottom and the fixed board, so that heat on the bottom of the power supply can be radiated quickly.
3 This is a high voltage product. Do not touch it when it is working.
4 Usually after ozone sterilization, it needs 20-30 minutes to diffuse ozone before anyone enters. And only when the ozone concentration is or below 0.15ppm, it is permitted to enter.
5 The ozone output test data is based on 95% pure oxygen feeding and dew point -45°. Different temperature and humidity in the environment will affect the ozone output and concentration.
6 This item can work continuously for 20~30 minutes with air cooling. If it continues to work without any rest, the ozone output will decrease by degrees because ceramic plates are overheated.
7 When two high voltage wires are very close to each other, especially under moist circumstances or they touch, the wires will make a light and possibly lead that the insulation becomes discoloured even melts. The way to avoid this matter is to keep the two high voltage wires parallel or separate, at least untouched.
8 Usually when ozone generator is used for test, it will be better if the interval time between two tests is one minute. It is because the output voltage and start-up electric current is very very high, if it is started up and closed down frequently within several minutes, power supply is possible to be burned due to instant or instantaneous high current.
9 Deoxidized materials or objects should not be contacted with ozone for a long time.
