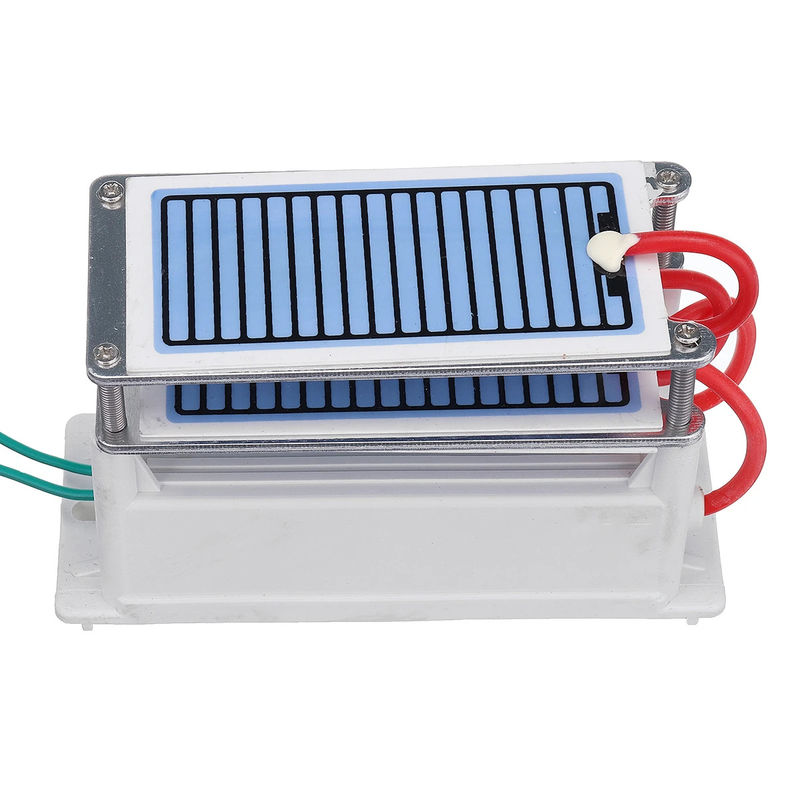

AC Compact Ceramic Ozone Generator Module 12V 24V CE CQC Certified
  • AC Compact Ceramic Ozone Generator Module 12V 24V CE CQC Certified
  • AC Compact Ceramic Ozone Generator Module 12V 24V CE CQC Certified

AC Compact Ceramic Ozone Generator Module 12V 24V CE CQC Certified

Place of Origin CHINA
Brand Name KRHX
Certification CE/ROHS
Model Number KR-OZG-10G
Product Details
Ozone Output:
10g
Usage:
Ozone Machine
Powe Supply:
220V
Lifspan:
6000-8000 Hours
Name:
Ceramic Plate Ozone
Working:
Corona Discharge
Application:
Car, Outdoor, Hotel, Garage, Commercial, Household
Certification:
CE, ROHS
Appearanace:
Eighteen Line
High Light:

ompact Ceramic Ozone Generator

,

Ceramic Ozone Generator 12V

,

Compact Ozone Generator Ceramic

Payment & Shipping Terms
Minimum Order Quantity
10 SET
Packaging Details
Ozone Generator are packed in carton, 10 boxes to one carton.
Delivery Time
5-8 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
5000 Set/Week
Product Description

12V 24V AC Ceramics Ozone Generator Module


These compact ozone generators were created specifically to withstand the demanding environment of the any machine. For home, car, workshop, shed, bathroom, conference rooms, public places and so on ,sterilization, air purification, Dryer,Dishwasher,Refrigerator,Electronic shoe cabinet,Air purifier and so on.



Overview



● Produces powerful oxidant.
● Disinfects water & air by killing viruses and biological contaminants.
● Reduces the use of chemical levels which means it saves you money.
● Low power consumption.
● Designed & tested specially for Water and Air.
● Small and compact unit.
● CE, & CQC certified.



Technical parameter



Item Ozone Generator Accessories
Ozone output 5g/hr
Size of ozone plate 105*50*1.0mm
Dimension(L*W*H) 5.7”*2.2”*3.0”(143*56*62mm)
Voltage AC220V AC110V 24V 12V
Generating Method Corona Discharge
Application Car, RV, Outdoor, Hotel, Garage, Commercial, Household
Weight 0.5KG

AC Compact Ceramic Ozone Generator Module 12V 24V CE CQC Certified 0



Feature

1. High Ozone Production Rate

High-voltage and high-frequency corona discharge, small size transformer, low consumption rate of electricity.


2. Moisture-proof

Epoxy potting, Damp proof, Waterproof, Corrosion proof transformer.


3. Easy installation and maintenance

Structure of this ozone generator is convenient for the cleaning and replacement of ozone plates.


4. Ultra Long Service Life

Long-life ceramic plates are made through green production on 96% aluminum oxide ceramics, with silk-screen discharge resistance of tungsten and molybdenum and other agents, flattened and tin-treated on electrodes after co-firing to high temperature 1650 ℃.High temperature co-firing electrodes and circuit its never fall off, and are with excellent moisture and oxidation resistance.



Test conditions:

1. Feed Gas: Dry air or oxygen source recommendated
2. Ambient temperature: ≤10℃, Humidity: <10% (Different temperature and humidity in the environment will affect the ozone output and concentration.)



Application

Ozone has disinfection, sterilization, in addition to the role of peculiar smell, at large ozone used in cold storage, granary, factories and other large space, in small specifications of ozone used to air purifier, refrigerator, washing machine and other household appliances and cars.



Attention must be paid to the following:

1 Cooling method: Air cooling for transformer and ceramic plate.
2 When ozone generators work, it is necessary to have cooling fans to blow the ceramic plates and ozone power supplies. When installing the power supply, please make sure there is 2-3cm high space between its bottom and the fixed board, so that heat on the bottom of the power supply can be radiated quickly.
3 This is a high voltage product. Do not touch it when it is working.
4 Usually after ozone sterilization, it needs 20-30 minutes to diffuse ozone before anyone enters. And only when the ozone concentration is or below 0.15ppm, it is permitted to enter.
5 The ozone output test data is based on 95% pure oxygen feeding and dew point -45°. Different temperature and humidity in the environment will affect the ozone output and concentration.
6 This item can work continuously for 20~30 minutes with air cooling. If it continues to work without any rest, the ozone output will decrease by degrees because ceramic plates are overheated.
7 When two high voltage wires are very close to each other, especially under moist circumstances or they touch, the wires will make a light and possibly lead that the insulation becomes discoloured even melts. The way to avoid this matter is to keep the two high voltage wires parallel or separate, at least untouched.
8 Usually when ozone generator is used for test, it will be better if the interval time between two tests is one minute. It is because the output voltage and start-up electric current is very very high, if it is started up and closed down frequently within several minutes, power supply is possible to be burned due to instant or instantaneous high current.
9 Deoxidized materials or objects should not be contacted with ozone for a long time.
