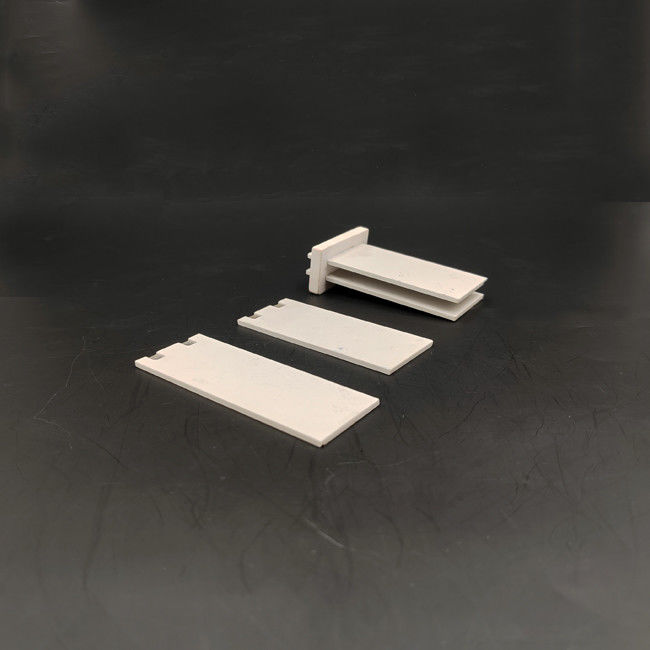

High-temperature Planar electrical heating element

High-temperature Planar electrical heating element

  The high-temperature co-fired ceramic heating element is directly printed with resistance paste on the alumina ceramic green body, and then co-fired at a high temperature of 1600 ℃. Then the electrodes and lead wires are processed to produce a new generation of low-temperature heating elements.

High temperature plate ceramic heating element is a kind of heating equipment that can work in a high temperature environment.

Planar heating elements Feature

1. Quick heat time
2. Good insulation performance
3. Strong resistance to high temperature and poisoning
4. Long lifetime

Planar heating elements Structure

A. Materials -

1. Substrate: White multi-layer alumina ceramics, -Al2O3 content not less than 95%.
2.  Lead: 0.5mm nickel wire.
3.  Casing, Adhesive Paper: Teflon, High Temperature Resistant Adhesive Paper
4.  Resistance: high temperature materials such as tungsten

B. Shape - 1. Flat plate

C. Wiring - 1. External lead-out cable

How it Works

The high-temperature planar ceramic heating element is a heating element that can work stably in a high-temperature environment. It is made of ceramic material, which has good high temperature resistance and excellent heating uniformity. This type of heating element is often used in a wide range of industrial applications, such as plastics processing, glass processing, food processing, etc.

The high-temperature planar ceramic heating element has the characteristics of small size, light weight and fast response, which can quickly reach the set working temperature and has high heating efficiency. Because it is made of ceramic material, it has good corrosion resistance and chemical stability, and can work stably for a long time in harsh working environments.

Compared with traditional metal heating elements, high-temperature planar plate ceramic heating elements have a longer service life and lower energy consumption, which can save users costs. At the same time, due to the flat plate design, installation and maintenance are also more convenient and quick.

Overall, the high-temperature planar plate ceramic heating element is an ideal high-temperature heating solution due to its stable performance, efficient heating effect and long service life.

Application

The high-temperature planar ceramic heating element is a heating element that can work stably in a high-temperature environment. It is made of ceramic material, which has good high temperature resistance and excellent heating uniformity. This type of heating element is often used in a wide range of industrial applications, such as heating industrial equipment, laboratory equipment, plastics processing, glass processing, food processing, etc.
