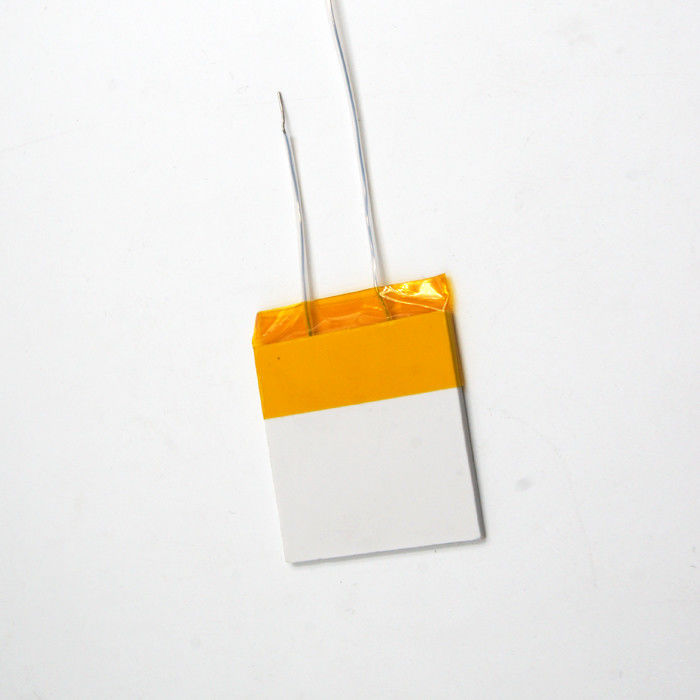

CE MCH Metal Ceramic Heater , industrial Ceramic Heating Elements Fast Heating
  • CE MCH Metal Ceramic Heater , industrial Ceramic Heating Elements Fast Heating
  • CE MCH Metal Ceramic Heater , industrial Ceramic Heating Elements Fast Heating

CE MCH Metal Ceramic Heater , industrial Ceramic Heating Elements Fast Heating

Place of Origin China
Brand Name KRHX
Certification CE
Model Number KR-CMP
Product Details
Heating Element Material:
96% AL2O3 Ceramic
Feature:
Fast Heating
Voltage:
12V - 230V
Application:
Heaters, Cigarette Lighters, Electronic Cigarettes, Aromatherapy Ovens, Cold And Warm Air Conditioning
Item:
Ceramic Heating Element
Cable:
Customized
Working Temperature Range:
Max 600°C , Lower Than 400 Degree Is Better.
Advantage:
Long Use-Life
Certificate:
RoHS, ISO9001
High Light:

CE MCH Metal Ceramic Heater

,

Ceramic Heating Elements Fast Heating

,

Industrial Ceramic Heating Elements

Payment & Shipping Terms
Minimum Order Quantity
10
Packaging Details
In cartons each containing 20 boxes
Delivery Time
5-8 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000PCS/Week
Product Description

MCH Metal Ceramic Heater Ceramic Heating Elements

Description

The high-temperature co-fired ceramic heating element is directly printed with resistance paste on the alumina ceramic green body, and then co-fired at a high temperature of 1600 ℃. Then the electrodes and lead wires are processed to produce a new generation of low-temperature heating elements.



CE MCH Metal Ceramic Heater , industrial Ceramic Heating Elements Fast Heating 0



Feature of industrial Ceramic Heating Elements
1. High effective,
2. protects rank high
3. It can control the temperature by itself
4. Used in large range of voltage from 12V to 240V
5. leaks electric current small,life long and do not generate RFI noise.
6. It doesn't turn to red or get fire when it is working.
7. Even with the regard to voltage changes, the constant temperature mechanism will be effective.



Main technical parameters

Product Name MCH Metal Ceramic Heater Ceramic Heating Elements
Size 54*54mm
Voltage 3V/ 3.7V/ 5V/ 7.4V/ 12V/ 24V/ 100V/ 110V/ 120V/ 220V/ 230V/ Customized
Heating elements Ceramic plate
Cable 300-500mm
LCertification RoHS,ISO9001
Application All electricity industries



We can design and make special MCH's for your applications if our standard ones don't fit your need. They can have different heights, from 0.8mm to 3.0mm, different shapes, and different powers. Please call us for more information.



CE MCH Metal Ceramic Heater , industrial Ceramic Heating Elements Fast Heating 1CE MCH Metal Ceramic Heater , industrial Ceramic Heating Elements Fast Heating 2CE MCH Metal Ceramic Heater , industrial Ceramic Heating Elements Fast Heating 3CE MCH Metal Ceramic Heater , industrial Ceramic Heating Elements Fast Heating 4



Application of industrial Ceramic Heating Elements

1.Household: hair dryer, clothes dryer, warming machine, electric heating panel, electric iron, hair straightener, electric cooker, sitting heater etc.
2.Industry: drying plant, electric adhesive machine, water and oil heater machine, etc.
3.Electronics Industry: Crystal device thermostat, etc.
4.Medical: Infrared therapy, Intravenous heating, etc.
5.Others such as laboratory test.
