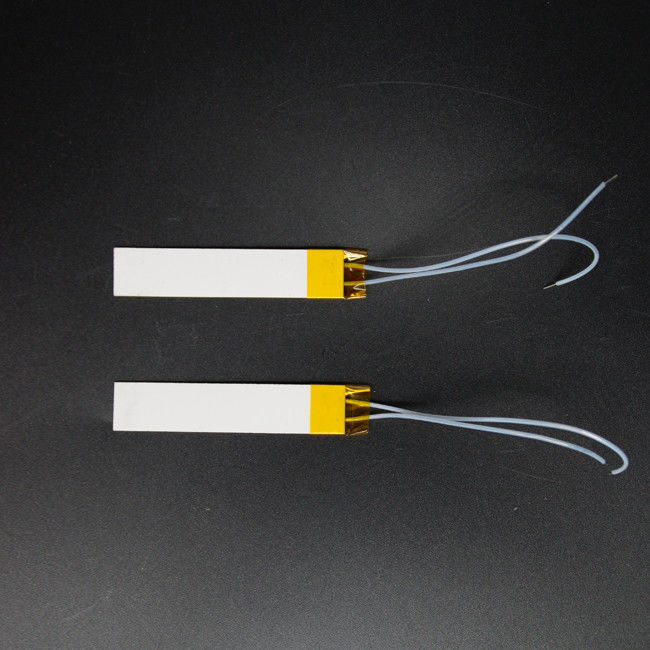

MCH Ceramic Plate Heating Element Fast Heating 12V 40W Power
  • MCH Ceramic Plate Heating Element Fast Heating 12V 40W Power
  • MCH Ceramic Plate Heating Element Fast Heating 12V 40W Power
  • MCH Ceramic Plate Heating Element Fast Heating 12V 40W Power

MCH Ceramic Plate Heating Element Fast Heating 12V 40W Power

Place of Origin China
Brand Name KRHX
Certification CE
Model Number KR-CMP
Product Details
Name:
MCH Ceramic Plate Heating Element
Heating Element Material:
Aluminum Ceramics
Voltage:
5V - 230V
Application:
For Metal And Mold Heating
Item:
Ceramic Plate Heaters
Feature:
Fast Heating
Cable:
Customized
Connector:
Customized
Size:
70*13mm
Max. Temperature:
850℃
High Light:

MCH Ceramic Plate Heating Element

,

Ceramic Plate Heating Element Fast Heating

,

Ceramic Plate Heating Element 12V

Payment & Shipping Terms
Minimum Order Quantity
10
Packaging Details
In cartons each containing 20 boxes
Delivery Time
5-8 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000PCS/Week
Product Description

MCH Ceramic Electric Heating Element



Description

The high-temperature co-fired ceramic heating element is directly printed with resistance paste on the alumina ceramic green body, and then co-fired at a high temperature of 1600 ℃. Then the electrodes and lead wires are processed to produce a new generation of low-temperature heating elements.



MCH Ceramic Electric Heating Element Advantage



The surface temperature of aluminum ceramic heating plates can reach 200°C in seconds and 500°C in 30 seconds, the max and steady temperature can be up to 600-800°C which depends on the heat sink. Ceramic heater pass 60 minutes 'ON', 60 minutes 'OFF' for 1000 cycles life test at around 280°C.

Perfect for scientific research in lab environment due to its small size, high power density, high temperature and excellent insulation.



MCH Ceramic Plate Heating Element Fast Heating 12V 40W Power 0



Main technical parameters

Product Name MCH Ceramic Electric Heating Element
Size 70*13mm
Voltage 12V
Power 40W
Warpage <0.2mm
Leads Tensile Strength

axial direction ≥ 5

acros direction ≥ 3

Lead 1mm industrial nickel wire(The length depends on the customer)
Application Industrial drying equipment, electric Bonding liquid heater



We can design and make special MCH's for your applications if our standard ones don't fit your need. They can have different heights, from 0.8mm to 3.0mm, different shapes, and different powers. Please call us for more information.



MCH Ceramic Electric Heating Element Application

The MCH ceramic heating element widely used in all kinds of applications nowadays, such as: hair straightener, intelligent bidet seat, electric water heater, medical machine, dryer, electric heating splint, electric iron, vacuum flask, electric cooker, electric bonder, capper, UTR cylinder condensation-proofer, IR physiotherapy equipment, intravenous injection heating, quick food heating, mini thermostatic bath for special crystal parts, automatic exhaust oxidation sensors, industrial equipment heater, and small heating appliance, etc.
