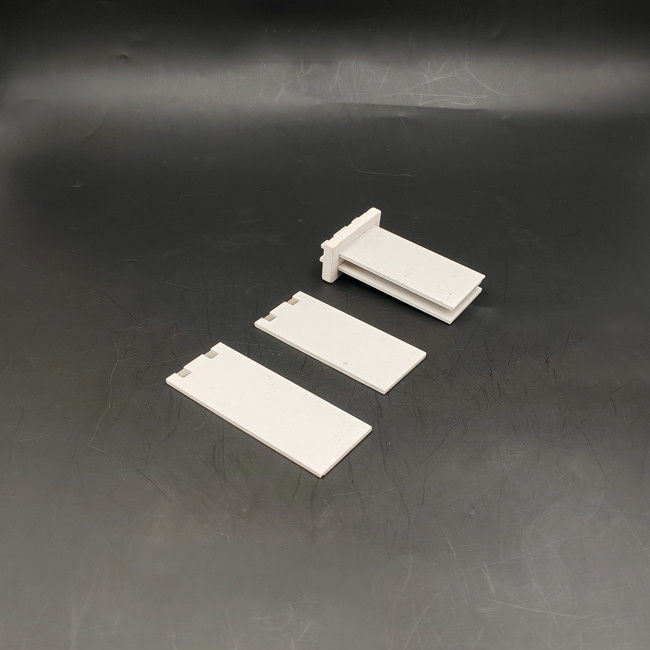

Platelet Shaped High Temperature Ceramic Heating Element For Industrial Drying Equipment
  • Platelet Shaped High Temperature Ceramic Heating Element For Industrial Drying Equipment
  • Platelet Shaped High Temperature Ceramic Heating Element For Industrial Drying Equipment

Platelet Shaped High Temperature Ceramic Heating Element For Industrial Drying Equipment

Place of Origin China
Brand Name KRHX
Certification CE
Model Number KR-CMP
Product Details
Heating Element Material:
Aluminum Ceramics
Feature:
Fast Heating
Voltage:
5V - 230V
Application:
For Metal And Mold Heating
Item:
Ceramic Plate Heaters
Cable:
Customized
Connector:
Customized
Max. Temperature:
750℃
High Light:

CE High Temperature Ceramic Heating Element

,

KRHX High Temperature Ceramic Heating Element

Payment & Shipping Terms
Minimum Order Quantity
10
Packaging Details
In cartons each containing 20 boxes
Delivery Time
5-8 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000PCS/Week
Product Description

High Temperature Heaters Platelet-Shaped Heating Elements



Description

High Temperature Heaters Platelet-Shaped Heating Elements is laminated and vacuum treated, and then the metal and ceramics are co-fired at a high temperature of about 1650℃, and then welded with lead wires. It becomes a heating element of medium and low temperature. This kind of heating element is another new product after alloy electric heating wire and PTC heating element.



Product composition

1. Substrate: the content is not less than 95% white Al2O3 ceramics

2. Lead: 0.5mm nickel wire or nickel copper wire

3. Casing: Teflon

4. Heating material: tungsten


Platelet Shaped High Temperature Ceramic Heating Element For Industrial Drying Equipment 0



Main technical parameters of High Temperature Heaters Platelet-Shaped Heating Elements

Product Name

High Temperature Heaters Platelet-Shaped Heating Elements

Max. Temperature used up to max. 700 ° C
Power 12-100
Warpage <0.2mm
Leads Tensile Strength

axial direction ≥ 5

acros direction ≥ 3

Advantage energy-saving, superior thermal properties, high reliability
Application Industrial drying equipment, electric Bonding liquid heater



We are able to tailor heating elements according to your wishes. The electrical data, such as voltage, resistance and power, as well as the component dimensions can be customized within wide ranges. The heating surface can vary from a few mm² to about 100 cm².

From the high-quality standard product to the tailor-made heating element, we meet every customer request.



Platelet Shaped High Temperature Ceramic Heating Element For Industrial Drying Equipment 1



Advantages of High Temperature Heaters Platelet-Shaped Heating Elements
1. Rapid temperature rise, 10 seconds up to the rated 100℃~230℃; 30 seconds up to 500℃~700℃.
2. High thermal efficiency, energy saving, no pollution, in line with environmental requirements.
3. Uniform heat, no open fire, safe to use.
4. The heater is in the vacuum state, and the heater is resistant to acid, alkali and harmful gases.
5. Long service life and small power attenuation.



Application of High Temperature Heaters Platelet-Shaped Heating Elements

· Home Appliance: small warm-air heater, air purifiers, houlsehold deodorization, clothes dryer, electric heating splint, iron, electric iron, thermos flask, insulation cabinet, electric cooker, smart toilet ceramic heater, instant heating water dispenser, etc.

· Beauty: hair dryer,hair straightener, curling iron, masssagers, humidifiers, facial steamer etc.

· Kitchen and Bathroom: coffee machine, yogurt maker, baby bottle warmer, sterilizer, beverage machine, instant heating water dispenser, electric faucets, showers, smart toilet ceramic heater etc.

· Medical Field: Infrared physiotherapy instrument, intravenous injection heater, forehead thermometer,ventilator, dialysis machine, nuclear acid extractor, moxi-bustion etc.

· Popular Field: HNB cigarettes, 3D printing etc.
