24V 80W Wired MCH Metal Ceramic Heater Plate Heating Element 40mm X 40mm
  • 24V 80W Wired MCH Metal Ceramic Heater Plate Heating Element 40mm X 40mm
  • 24V 80W Wired MCH Metal Ceramic Heater Plate Heating Element 40mm X 40mm
  • 24V 80W Wired MCH Metal Ceramic Heater Plate Heating Element 40mm X 40mm

24V 80W Wired MCH Metal Ceramic Heater Plate Heating Element 40mm X 40mm

Place of Origin China
Brand Name KRHX
Certification CE
Model Number KR-CMP
Product Details
Heating Element Material:
Aluminum Ceramics
Feature:
Fast Heating
Voltage:
DC / AC 5-220V
Application:
For Metal And Mold Heating
Item:
Ceramic Plate Heaters
Cable:
Customized
Connector:
Customized
Size:
40*40mm
Max. Temperature:
850℃
High Light:

24V Metal Ceramic Heater Plate

,

80W Metal Ceramic Heater Plate

Payment & Shipping Terms
Minimum Order Quantity
10
Packaging Details
In cartons each containing 20 boxes
Delivery Time
5-8 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000PCS/Week
Product Description

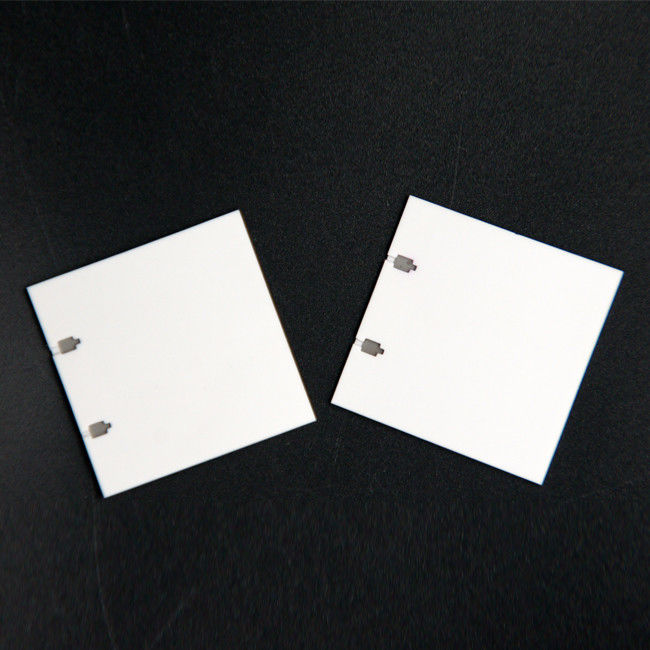

24V 80W Wired MCH Metal Ceramic Heater Plate Heating Element 40mm x 40mm

Description

MCH Metal Ceramic Heater Plate Heating Element is made up of high melting point metal heating material such as tungsten, molybdenum or molybdenum – manganese and 96% alumina ceramic substrates. The metal heating resistance slurry is printed onto the tape casting ceramic green body according to the design requirement, several layers of ceramic green body are then laminated together and is fired at 1500 ~ 1600 ℃ high temperature, with the aid of 4-8% sintering additive, to form the alumina ceramic heating element. This product features in corrosion-resistant, withstanding high temperature, long life cycle, energy efficient, uniform surface temperature, excellent thermal conductivity and thermal compensation rate. Alumina ceramic heating element doesn’t contain harmful substances such like: lead, cadmium, mercury, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, etc., and is in compliance with EU RoHS and other environmental requirements.



24V 80W Wired MCH Metal Ceramic Heater Plate Heating Element 40mm X 40mm 0



Main technical parameters

Product Name

24V 80W Wired MCH Metal Ceramic Heater Plate Heating Element 40mm x 40mm

Size 40*40mm
Voltage Depending on the resistance value, alumina ceramic heating element can be used in a wide range of voltage from 5V DC to 220V AC.
Warpage <0.2mm
Leads Tensile Strength

axial direction ≥ 5

acros direction ≥ 3

Leakage current  <5mA
Application Industrial drying equipment, electric Bonding liquid heater



Features

Energy saving, high thermal efficiency
Surface is not charged, good electric insulation, withstand 4500V/1s, leakage current<0.5mA
Linear resistance-temperature, easy to control temperature by controlling the electric resistance
No power decay for a long period
Rapid heating, a 500W ceramic heating element can reach above 600 ℃ in 20 seconds; its components can reach above 200 ℃ in 10 seconds
No open flame, safety
Uniform surface heating
Environmental Protection: no lead, cadmium, mercury, hexavalent chromium, polybrominated biphenyls, more harmful substances such as polybrominated diphenyl ethers, in full compliance with EU environmental requirements.



Production Equipment

24V 80W Wired MCH Metal Ceramic Heater Plate Heating Element 40mm X 40mm 1

Application

· Home Appliance: small warm-air heater, air purifiers, houlsehold deodorization, clothes dryer, electric heating splint, iron, electric iron, thermos flask, insulation cabinet, electric cooker, smart toilet ceramic heater, instant heating water dispenser, etc.

· Beauty: hair dryer,hair straightener, curling iron, masssagers, humidifiers, facial steamer etc.

· Kitchen and Bathroom: coffee machine, yogurt maker, baby bottle warmer, sterilizer, beverage machine, instant heating water dispenser, electric faucets, showers, smart toilet ceramic heater etc.

· Medical Field: Infrared physiotherapy instrument, intravenous injection heater, forehead thermometer,ventilator, dialysis machine, nuclear acid extractor, moxi-bustion etc.

· Popular Field: HNB cigarettes, 3D printing etc.

24V 80W Wired MCH Metal Ceramic Heater Plate Heating Element 40mm X 40mm 2
