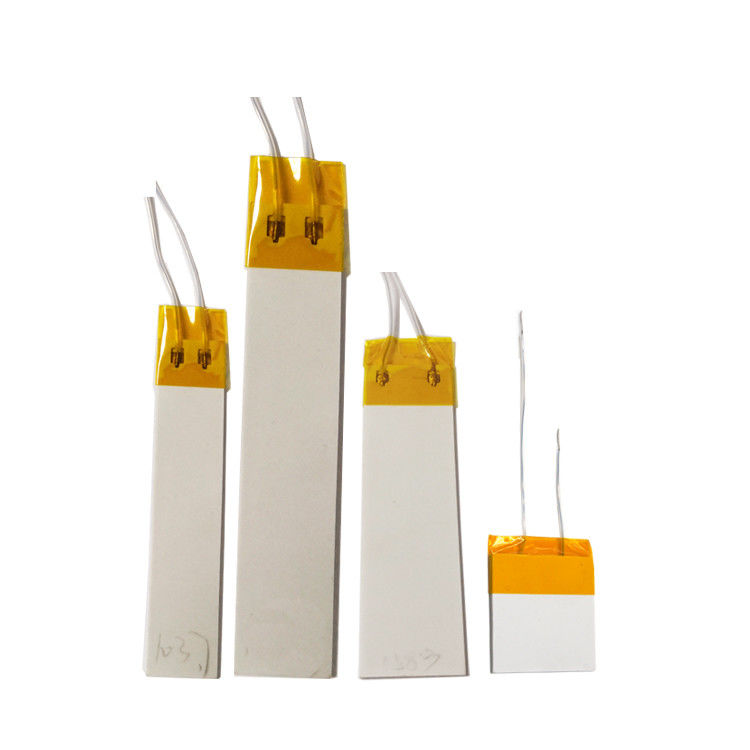

40W Industrial Ceramic Heating Plate Alumina Ceramic Air Heater
  • 40W Industrial Ceramic Heating Plate Alumina Ceramic Air Heater
  • 40W Industrial Ceramic Heating Plate Alumina Ceramic Air Heater

40W Industrial Ceramic Heating Plate Alumina Ceramic Air Heater

Place of Origin China
Brand Name KRHX
Certification CE
Model Number KR-CMP
Product Details
Item:
Ceramic Plate Heaters
Heating Element Material:
Aluminum Ceramics
Feature:
Fast Heating
Voltage:
12V - 230V
Application:
For Metal And Mold Heating
Cable:
Customized
Connector:
Customized
Highlight:

Industrial Ceramic Heating Plate

,

40W Ceramic Heating Plate

,

Alumina Ceramic Air Heater

Payment & Shipping Terms
Minimum Order Quantity
10
Packaging Details
In cartons each containing 20 boxes
Delivery Time
5-8 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000PCS/Week
Product Description

40W Industrial Ceramic Heating Plate Alumina Ceramic Air Heater



Description

The high-temperature co-fired ceramic heating element is directly printed with resistance paste on the alumina ceramic green body, and then co-fired at a high temperature of 1600 ℃. Then the electrodes and lead wires are processed to produce a new generation of low-temperature heating elements.

40W Industrial Ceramic Heating Plate Alumina Ceramic Air Heater 0
Major raw materials
► Substrate: White multi-layer alumina ceramics, -Al2O3 content not less than 95%.
► Lead: 0.5mm nickel wire.
► Casing, Adhesive Paper: Teflon, High Temperature Resistant Adhesive Paper
► Resistance: high temperature materials such as tungsten
► Product thickness: 0.7-2.0 mm. Customizable
► Use voltage: 3.7V, 4.5V, 5V, 7V, 6V, 9V, 12V, 24V, 36V, 110V, 220V, 380V, etc. can be customized.
► Resistance selection: 0.3 ~ 1500 ohms, according to voltage, chip size, power and customer needs.


40W Industrial Ceramic Heating Plate Alumina Ceramic Air Heater 140W Industrial Ceramic Heating Plate Alumina Ceramic Air Heater 2

40W Industrial Ceramic Heating Plate Alumina Ceramic Air Heater 340W Industrial Ceramic Heating Plate Alumina Ceramic Air Heater 4


Performance and characteristics
1. The structure is simple, and the shape, size and resistance power can be produced according to customers'needs.
2. Good thermal uniformity and high power density: & ge; 45 W/cm2;
3. Resistance-temperature change is linear, and temperature can be easily controlled by controlling resistance or voltage.
4. Quick temperature rise and quick temperature compensation;
5. High heating temperature;
6. High thermal efficiency, uniform heating and energy saving (20-30% less per unit heat consumption than PTC);
7. Nameless fire, surface safety without electricity.
Good insulation performance: safe surface without electricity, good insulation performance: can withstand 4500V/1S voltage test, no breakdown, leakage current & lt; 0.5mA;
8. Long service life, long time use without power attenuation;
9. Anti-acid, alkali and other corrosive substances of heating tablets;
10. Environmental protection: harmful substances such as lead, cadmium, mercury, chromium, more, more, etc., it is fully compatible with the environmental requirements of the EU.

40W Industrial Ceramic Heating Plate Alumina Ceramic Air Heater 5

Application

*Widely used in daily life, industrial and agricultural technology, communications, environmental protection, industrial drying equipment, electrothermal adhesives, water, oil and acid-base liquid heaters, hairdressers (hair straighteners, curlers), heaters, cigarette lighters, electronic cigarettes, aromatherapy ovens, cold and warm air conditioning, instant hot water heaters, instant hot taps and other fast heating devices, multi-functional microwave ovens, ovens, ovens, dryers and clothes dryers. Mobile phone dryer, air conditioning fan, air freshener, hot water kettle, coffee pot, medical treatment, infrared physiotherapy instrument, intravenous injection heater, etc.



Company

Shaanxi KaiRuiHongXing electronic Co., Ltd is manufacturing and sales as one of the production enterprise. Focusing on R&D of MCH ceramics heater ,ozone ceramics sheet, and intelligent voltage regulator, producing for nearly 20 years,our company has become one of the top 100 electronic component manufacturers in China. Our products have high quality and competitive price that we have enough strength to endure changing market conditions. Kairuihongxing management principle is "honesty is the best policy and customer is first priority". Our company will keeps providing a full set of high quality services for customers worldwide. The company always works together with the partners and investors to create a better future!
