Corona Discharge Ceramic Plate Ozone 100mg Remove Peculiar Smell
  • Corona Discharge Ceramic Plate Ozone 100mg Remove Peculiar Smell

Corona Discharge Ceramic Plate Ozone 100mg Remove Peculiar Smell

Place of Origin CHINA
Brand Name KRHX
Certification CE/ROSH
Model Number KR-OZG-0.1G
Product Details
Ozone Output:
100mg
Usage:
Small Ozone Machine
Voltage:
5V, 12V, 110V, 120V
Keyword:
Ozone Air Sterilizer
Lifspan:
7000-8000 Hours
Working:
Corona Discharge
Application:
Car, Outdoor, Hotel, Garage, Commercial, Household
Certification:
CE, ROSH Approved
Size Of Ozone Plate:
37*15*1mm
High Light:

Corona Discharge Ceramic Plate Ozone

,

Ceramic Plate OzoneCeramic Plate Ozone 100mg

Payment & Shipping Terms
Minimum Order Quantity
10 SET
Packaging Details
Ozone Generator are packed in carton, 10 boxes to one carton.
Delivery Time
5-8 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
5000 Set/Week
Product Description

Ceramic Ozone Plates



Ceramic ozone plate are used to produce ozone generator, remove peculiar smell, sterilize and disinfect.



Description

► This is accessory ozone plate generator, DIY required to connecto to power supply.
► Portable Ceramic Plate Ozone Generator. Single plate capacity 15-1000mg per hour.

► Powerful Odor Elimination and Deodorizer: Eliminates mal-odors from mold, cigarette/cigar smoke, pet odors, paint/cleaning fumes, dust, water damage, smoke damage, cooking odors, and other airborne irritants.
► Low energy consumption yields cost and energy savings.
► Plate may become hot when in use. Recommended to use a fan or switch off the generator after 30 minutes service for cooling.



Technical parameter

Item Ceramic Ozone Plates
Ozone output 15-1000mg/hr
Material 96% aluminum oxide ceramics
Working life 6000-8000 hours
Input voltage 12VAC
Output high voltage 3.0~3.5KV 16KHz
Power 3W
Generating Method Corona Discharge
Application Car, RV, Outdoor, Hotel, Garage, Commercial, Household
Weight 0.2KG



Features

1. High-voltage and high-frequency corona discharge, small size transformer, low consumption rate of electricity.

2. Epoxy potting, Damp proof, Waterproof, Corrosion proof transformer.

3. Easy to maintain and install.

4. Long-life ceramic plates are made through green production on 96% aluminum oxide ceramics, with silk-screen discharge resistance of tungsten and molybdenum and other agents, flattened and tin-treated on electrodes after co-firing to high temperature 1650 ℃. High temperature co-firing electrodes and circuits never fall off, and are with excellent moisture and oxidation resistance.

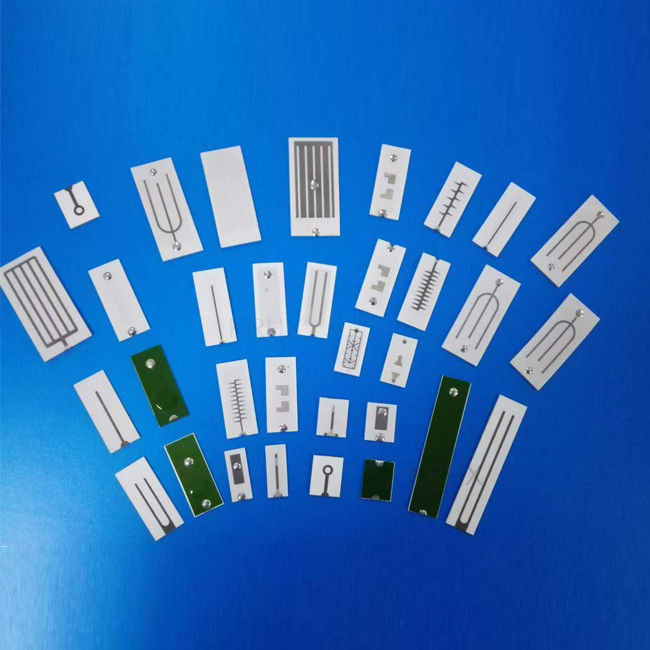

Corona Discharge Ceramic Plate Ozone 100mg Remove Peculiar Smell 0

Test conditions:

1. Feed Gas: Dry air or oxygen source recommendated
2. Ambient temperature: ≤10℃, Humidity: <10% (Different temperature and humidity in the environment will affect the ozone output and concentration.)



Application

It is used in household air purifier, air fresher, home air purifier, Dryer, dishwasher, shoe cabinet, household disinfectant cabinet, oxygen bar, dehumidifier, refrigerator, domestic appliance and so on.



Attention must be paid to the following:

1 Cooling method: Air cooling for transformer and ceramic plate.
2 When ozone generators work, it is necessary to have cooling fans to blow the ceramic plates and ozone power supplies. When installing the power supply, please make sure there is 2-3cm high space between its bottom and the fixed board, so that heat on the bottom of the power supply can be radiated quickly.
3 This is a high voltage product. Do not touch it when it is working.
4 Usually after ozone sterilization, it needs 20-30 minutes to diffuse ozone before anyone enters. And only when the ozone concentration is or below 0.15ppm, it is permitted to enter.
5 The ozone output test data is based on 95% pure oxygen feeding and dew point -45°. Different temperature and humidity in the environment will affect the ozone output and concentration.



Corona Discharge Ceramic Plate Ozone 100mg Remove Peculiar Smell 1

Corona Discharge Ceramic Plate Ozone 100mg Remove Peculiar Smell 2

Corona Discharge Ceramic Plate Ozone 100mg Remove Peculiar Smell 3
