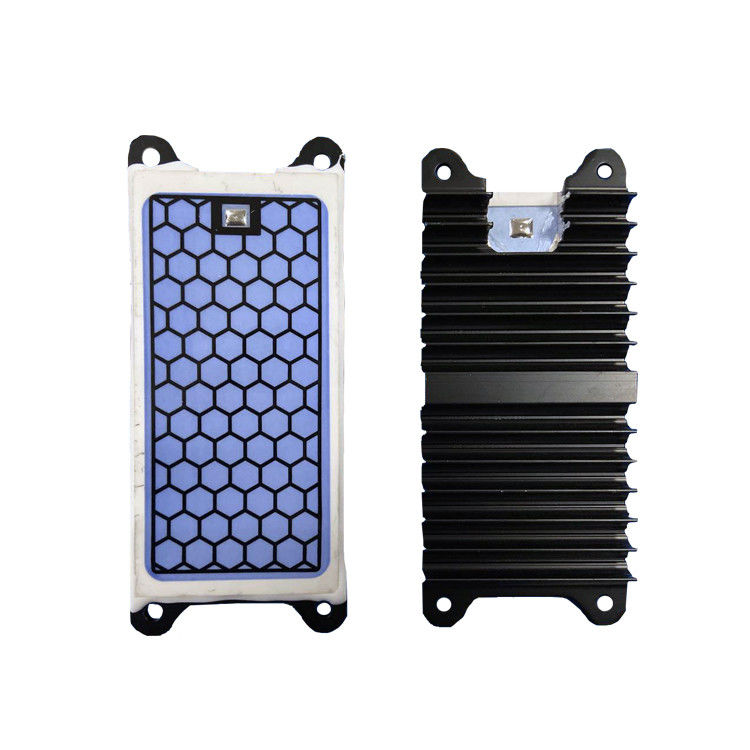

Ceramic Ozone Plate for Ozone Generator 5g/hr
  • Ceramic Ozone Plate for Ozone Generator 5g/hr
  • Ceramic Ozone Plate for Ozone Generator 5g/hr
  • Ceramic Ozone Plate for Ozone Generator 5g/hr

Ceramic Ozone Plate for Ozone Generator 5g/hr

Place of Origin CHINA
Brand Name KRHX
Certification CE/ROSH
Model Number KR-OZ-5G
Product Details
Ozone Output:
5g/hr
Usage:
Ozone Generator
Size:
105*50*1.0mm
Material:
Ceramic
Function:
Eliminates Odors, Freshens Stale Air
Life:
600-8000 Hours
Ceterfication:
CE
Payment & Shipping Terms
Minimum Order Quantity
10PCS
Delivery Time
5-8 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
5000PC/WEEK
Product Description

Ceramic Ozone Plate for Ozone Generator 5g/hr



Specification: Electric parameter: It can be used in vehicle or other types of DC,AC power, working voltage 4.5kv, frequency 25-30hz, different specifications power is different, and the power of the ozone plate can be constant after two hours.
Ozone Output: 5g/hr
Input Voltage: AC220V/110V10%
High Voltage: 3.1kv-4.5kv
Power Consumption: 100W
Gas Feeding: Dry Air or Oxygen
Ozone Generating Method: Corona Discharge

Cooling Method: Ambient Air Cooling

Working Principle: Take advantage of high voltage, use dry air or oxygen in the air as raw material to produce O3.
Ceramic Ozone Plate for Ozone Generator 5g/hr 0



Benefit

♦ High and Stable Ozone Production Rate: Its excellent production process can promise a stable ozone output at 5g/h.
♦ High Temperature Sintering Process: The circuit board of the ceramic ozone sheet adopts a silk-screen printing process, and the electrode adopts a high temperature sintering process to avoid falling off after long-term use.
♦ High Durable: The excellent production process provides a goods resistance to moisture and oxidation. This ensures that it can be used stably for several years at a regular frequency.
♦ Low Power Consumption: This ceramic ozone plate consumes very little power even for long periods of use.
♦ Universal: This ceramic ozone plate is suitable for most ozone generators using gram per hour level ozone plates.
♦ Multiple Applications: Suitable for sterilization, odor removal and a variety of other ozone applications.
♦ Safe: The high quality production process can ensure a safe use even in the home environment.



Application

Ozone has disinfection, sterilization, in addition to the role of peculiar smell, at large ozone used in cold storage, granary, factories and other large space, in small specifications of ozone used to air purifier, refrigerator, washing machine and other household appliances and cars.

Ceramic Ozone Plate for Ozone Generator 5g/hr 1Ceramic Ozone Plate for Ozone Generator 5g/hr 2

The ozone plate produced by our company is the largest manufacturer in China. Our ozone plates have high ozone concentration, long
service life, long-term work pattern not easy to fall off, good moisture resistance, high pressure resistance, high oxidation resistance, and rapid evaporation of the discharge surface. Uniform discharge and other advantages.
