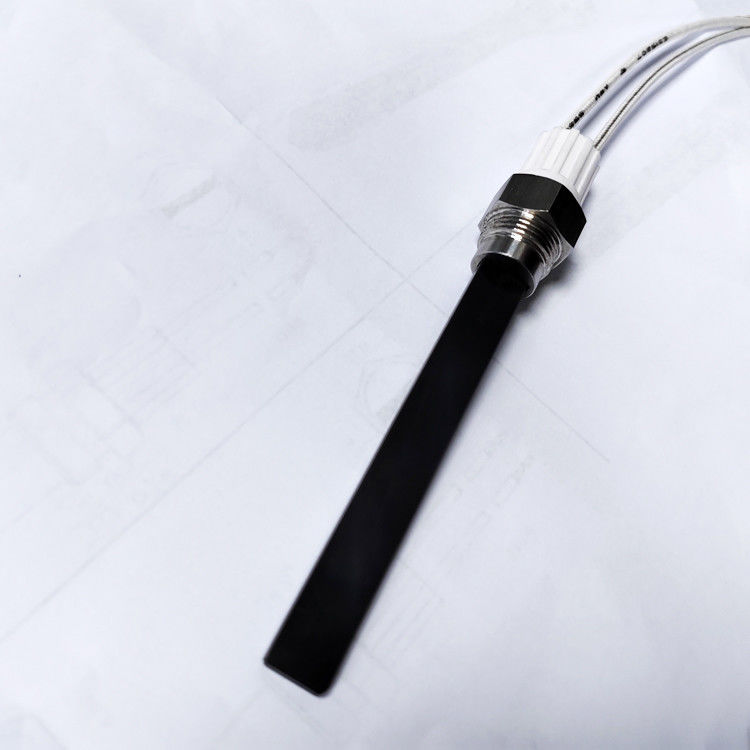

Hot Surface Ignitor Silicon Nitride 120V
  • Hot Surface Ignitor Silicon Nitride 120V

Hot Surface Ignitor Silicon Nitride 120V

Place of Origin China
Brand Name KRHX
Certification CE
Model Number KR-CS
Product Details
Material:
Silicon Nitride
Max Working Temperature:
1350℃
Feature:
Long Lifespan
Voltage:
120V
Power:
300-400W
Application:
Pellet Stove,furnaces And Water Heaters
Dimension(L*W*H):
11*127mm
High Light:

230V Silicon Nitride igniters

,

Durable Silicon Nitride igniters

Payment & Shipping Terms
Minimum Order Quantity
10
Packaging Details
In cartons each containing 20 boxes
Delivery Time
5-8 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000PCS/Week
Product Description

Hot Surface Ignitor Silicon Nitride 120V



Brief description:

  Igniters - silicon nitride igniter

SN heaters are used as the igniter in all gas appliances, including residential gas furnaces, gas boiler, etc. Kairui heater achieves quick and stable ignition because of its rapid heating performance, and high reliability contributes to long life and savings on maintenance for end-users. Also, the SN heater offers noise less ignition in contrast to a spark plug.



Specification

Product Name

Hot Surface Ignitor Silicon Nitride 120V

Size φ11*127mm
Voltage 120V
Power 300-400W(±10%)
Flange Ceramic
Cable 300-800mm
Lead In a ф 0. 8mm of Nickel wire(The length depends on the customer)
Application Pellet stove



Hot Surface Ignitor Silicon Nitride 120V 0



ADVANTAGES
• Rapid heating
• Small size / High watt density
• Long product life
• High insulation
• Direct water and kerosene heating
• Vacuum environment
• Oxidation and chemical resistance
• Output switching
• Temperature sensing



Application

Silicon nitride (Si3N4) ignitor is widely used in domestic, industrial and commercial applications. Typical applications include:

• Oil type medium ignition
• Gas ignition
• Burner ignition
• Preheat ignition
•A variety of high-temperature ignition



Company profile

Kairui Hongxing has two types of ceramic material for your heater application, alumina and silicon nitride.
Kairui will be happy to help you select the appropriate material for your needs.



Please feel free to contact us for any other applications not listed above.
