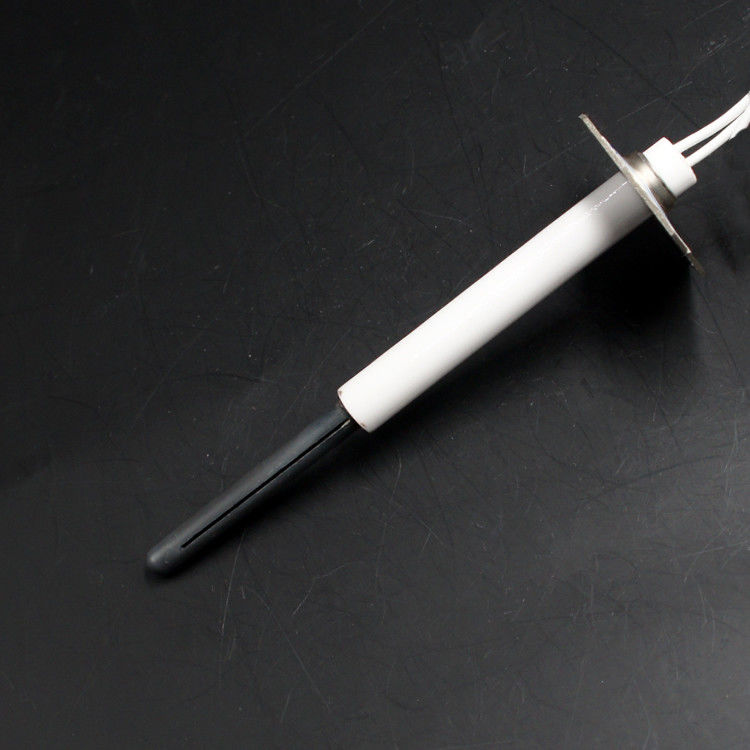

Electric Ceramic Pellet Igniter 220V Silicon Nitride Igniter
  • Electric Ceramic Pellet Igniter 220V Silicon Nitride Igniter
  • Electric Ceramic Pellet Igniter 220V Silicon Nitride Igniter

Electric Ceramic Pellet Igniter 220V Silicon Nitride Igniter

Place of Origin China
Brand Name KRHX
Certification CE
Model Number KR-N1
Product Details
Material:
Aluminum Ceramics
Max Working Temperature:
600-1100℃
Feature:
Long Lifespan
Voltage:
12V/24V
Power:
50-70W
Application:
Pellet Stove
Dimension(L*W*H):
10*120mm
Cable:
Glass Fiber Insulated Wire
Connector:
Male 4,8 Connector
High Light:

Electric Ceramic Pellet Igniter

,

Ceramic Pellet Igniter 220V

,

Silicon Nitride Igniter

Payment & Shipping Terms
Minimum Order Quantity
10
Packaging Details
In cartons each containing 20 boxes
Delivery Time
5-8 workdays
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1000PCS/Week
Product Description

Electric 220V Ceramic Igniter Silicon Nitride Igniter



Brief description

Introducing the Kairui Ceramic Igniter Silicon Nitride Igniter range, an advance in ignition technology for solid wood fuels.



Features:

♦ High electric insulation strength: No breakdown for 1 minute, at 2500V, 50Hz, and room temperature
♦ High application temperature: maximum 12000℃ in air
♦ High power at unit surface, up to 25 W/cm2
♦ Small thermal inertia and fast heating, surface temperature can be increased to 1100 0C in 15 seconds
♦ Acid and alkali corrosion resistance
♦ Small size and light weight
♦ Long service life up to 5000 h
♦ Power on / off circle can reach 10 million times
♦ Fast Preheat: when preheat temperature is 850 0C, the preheating time only need 3 to 5 seconds
♦ Low-temperature starting performance: -30 0C reliable starting
♦ High strength at high temperature, suitable for high-speed diesel engines and various high-temperature ignition



Specification

Product Name

Electric 220V Ceramic Igniter Silicon Nitride Igniter

Size φ10*120mm
Voltage AC12v/24v
Power 50-60W(±10%)
Flange Ceramic
Cable 300-800mm
Lead In a ф 0. 8mm of Nickel wire(The length depends on the customer)
Application Pellet stove



Electric Ceramic Pellet Igniter 220V Silicon Nitride Igniter 0



Application

Silicon nitride (Si3N4) ignitor is widely used in domestic, industrial and commercial applications. Typical applications include:

• Oil type medium ignition
• Gas ignition
• Burner ignition
• Preheat ignition
•A variety of high-temperature ignition



Company profile

Kairui Corporation specialises in ceramic hot surface igniters and has many years experience of working closely with customers to develop bespoke solutions for innovative appliance manufacturers. Kairui are a trusted manufacturer of hot surface ignition products to many industry sectors.
