1-200M Ohm High Temperature Resistor Non Inductive High Precision
  • 1-200M Ohm High Temperature Resistor Non Inductive High Precision
  • 1-200M Ohm High Temperature Resistor Non Inductive High Precision

1-200M Ohm High Temperature Resistor Non Inductive High Precision

Place of Origin CHINA
Brand Name KRHX
Certification CE/ROSH
Model Number KR-R2
Product Details
Features:
High Voltage
Name:
High Temperature Resistor
Resistance Tolerance:
±5%
Certificate:
RoHS
Technology:
Thick Film
Usage:
Power Electronic Equipment
Minimum Operating Temperature:
-55°C
Resistance:
1-200MΩ
High Light:

200M Ohm High Temperature Resistor

,

KRHX High Temperature Resistor

,

200M Ohm Resistor

Payment & Shipping Terms
Minimum Order Quantity
10PCS
Packaging Details
Glass Glaze High Voltage Resistor are packed in carton, 200pcs to a carton.
Delivery Time
5- 8 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
5000PCS/Week
Product Description

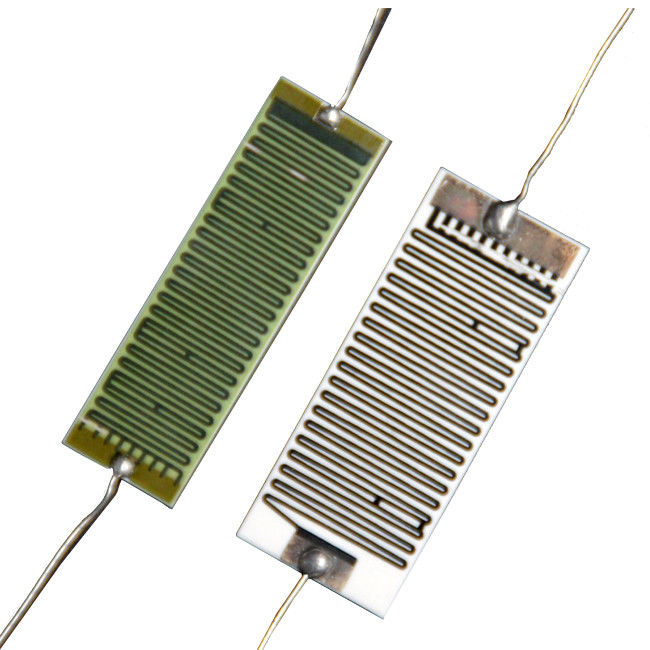

High Temperature Thick Film Voltage Divider



Planar high voltage dividers with proprietary non-inductive design, high precision, low ratio TC, low voltage coefficient, high stability, wide resistance and ratio range. It's used for Power Electronic Equipment and Voltage dividersuch as capacitor, State Grid, and space technology.



Features & Benefits



♦ High dielectric and low outgassing epoxy coating
♦ Low resistor noise
♦ Non-inductive
♦ RoHS compliant
♦ Radial terminals



Specification



Item High Temperature Thick Film Voltage Divider
Size 50*15*0.8mm / 50*20*1.0(customized)
Resistance  1-200M Ohm
Divider ratio  3077:1
Low Ratio TC  to 5 ppm/°C
Resistance Tolerance ±5%
Usage Power Electronic Equipment



1-200M Ohm High Temperature Resistor Non Inductive High Precision 0

Typical applications

* HV Measurement

* HV power supplies

* Medical instrumentation

* Current pulse limiters

* Ionization chambers
